Architectural Handrail Systems

Engineered and Manufactured by PRL Glass to the Highest Standards and Contemporary Designs. Toll Free 800-433-7044
Architectural Handrail System Manufacturer

Leading Manufacturer of Architectural Glass Handrail Systems

At PRL Glass we in house manufacture complete handrail systems, options to fit all your architectural guard railing and handrail design needs:

  • Dry & wet glazed guard and hand railing systems.
  • Stainless steel post support or stand offs systems.
  • Manufacture of ASTM 6063 T5 or 6005 T6 Aluminum guard and railing systems
  • Offering Large varieties of glass handrail styles and design specifications
  • Architectural manufacture of Std top cap mounts
  • Specifications Glass offset mounts
  • Leading Manufacturer of all Wall mount systems
  • Specializing in Architectural Specifications and Shop drawings to meet all your one stop shop manufacturing needs
  • Custom Engineering and Design (send us your dimensions and we will take care of the rest)

Because all of our handrail systems, components and hardware are manufactured in-house we give you the advantage of competitive pricing and fastest lead times in the industry. Why waste time shopping around when you can order all your glass and hand railing materials from one source!

Please feel free to contact our technical handrail and architectural design department for answers to all your manufacture needs Toll Free 800-433-7044.

Architectural Handrail Manufacturer, Specifications and Designs

PRL offers guardrail and handrail systems to fit all your application needs

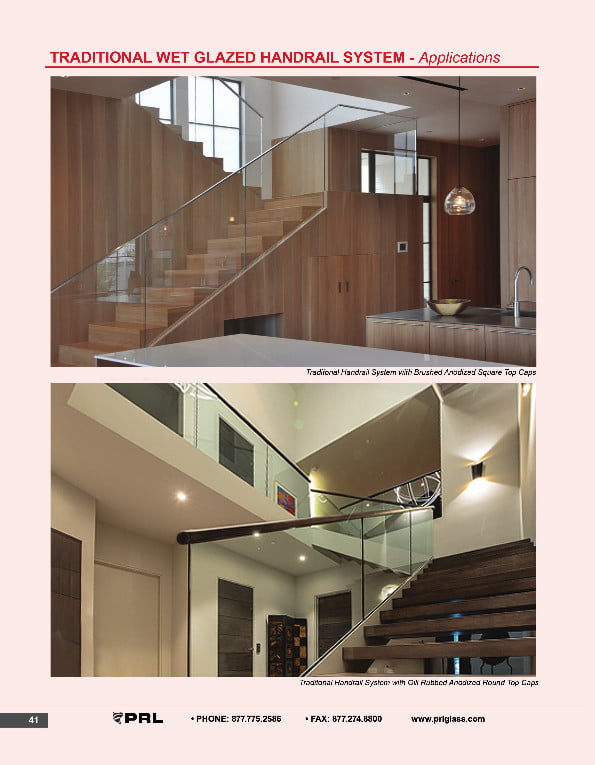

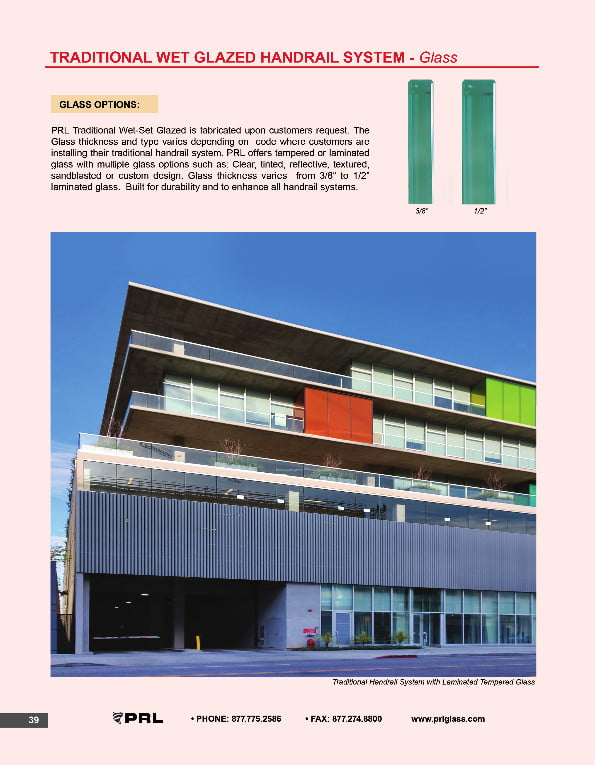

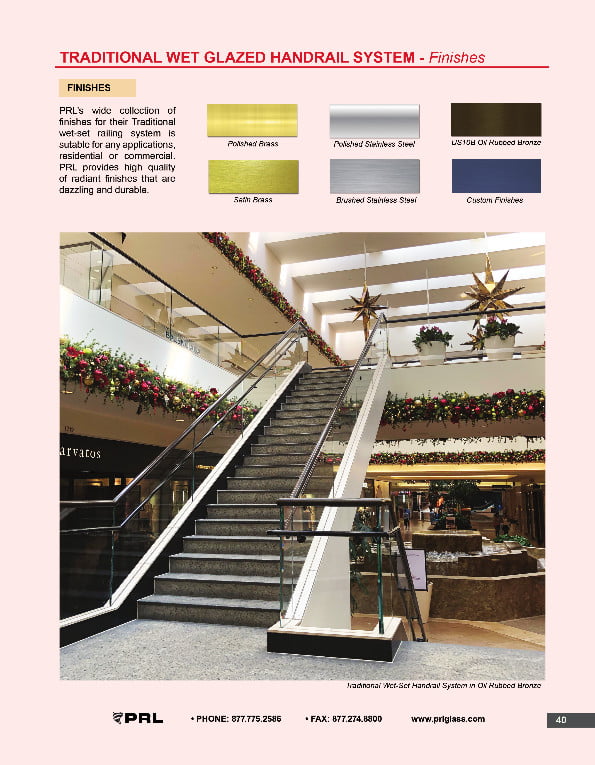

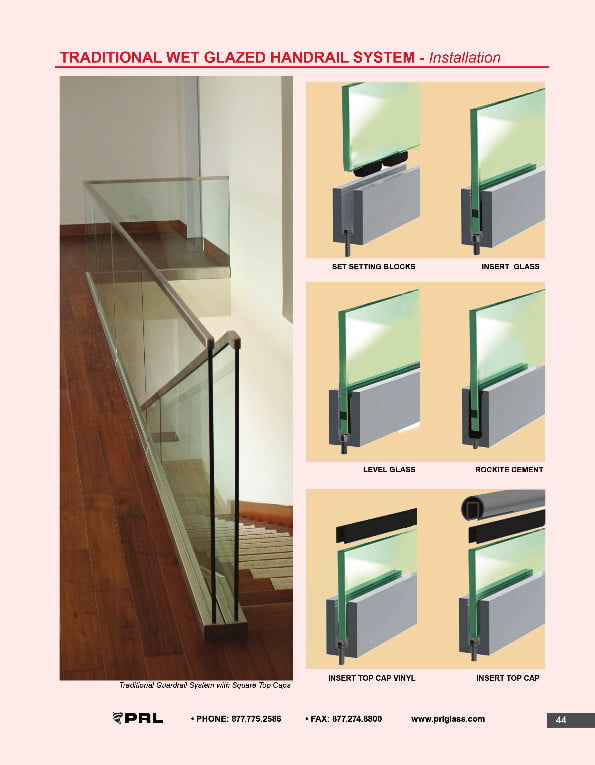

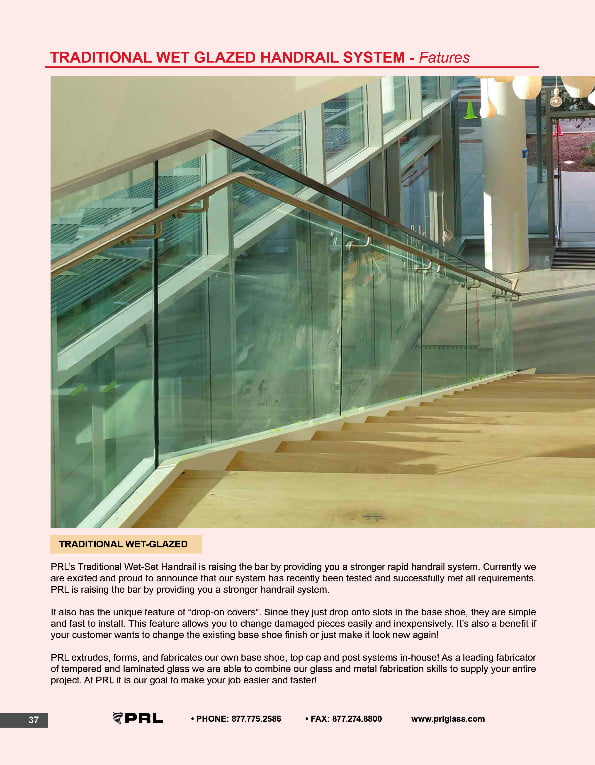

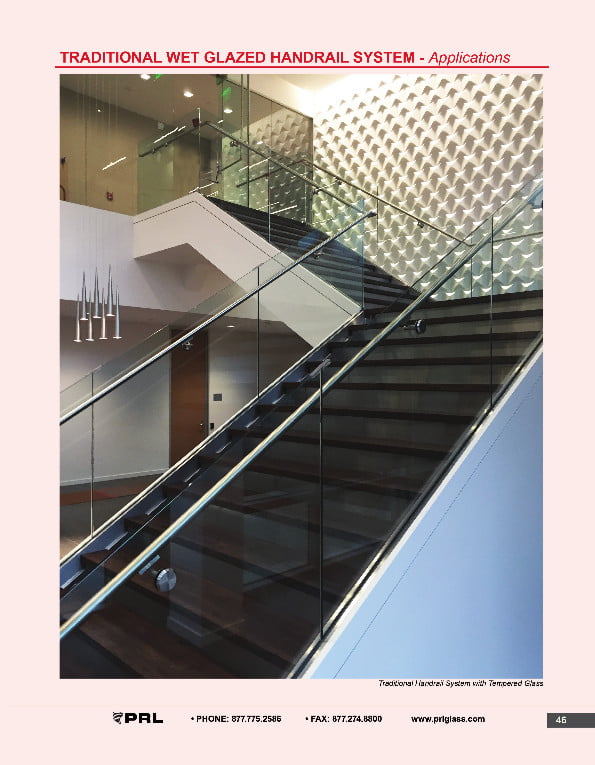

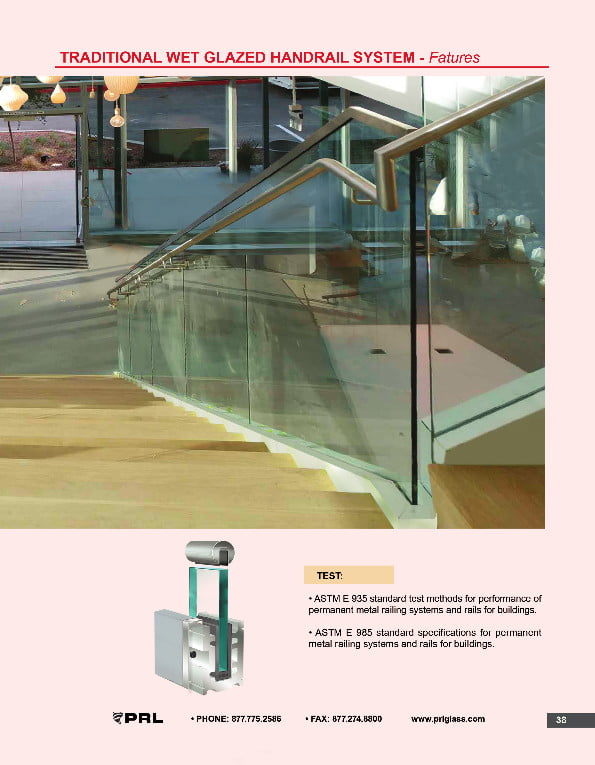

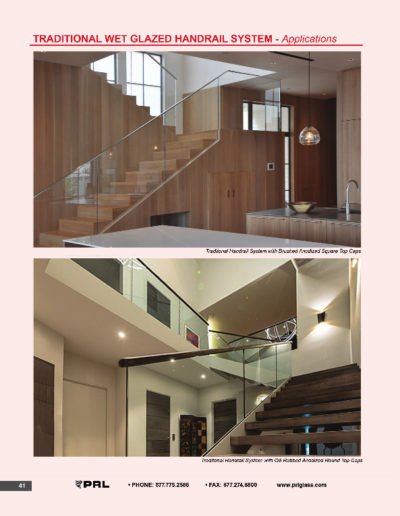

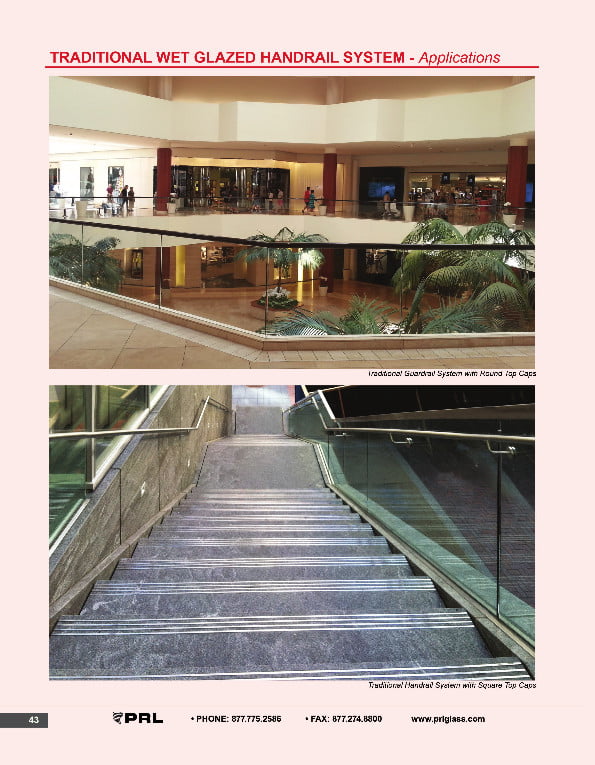

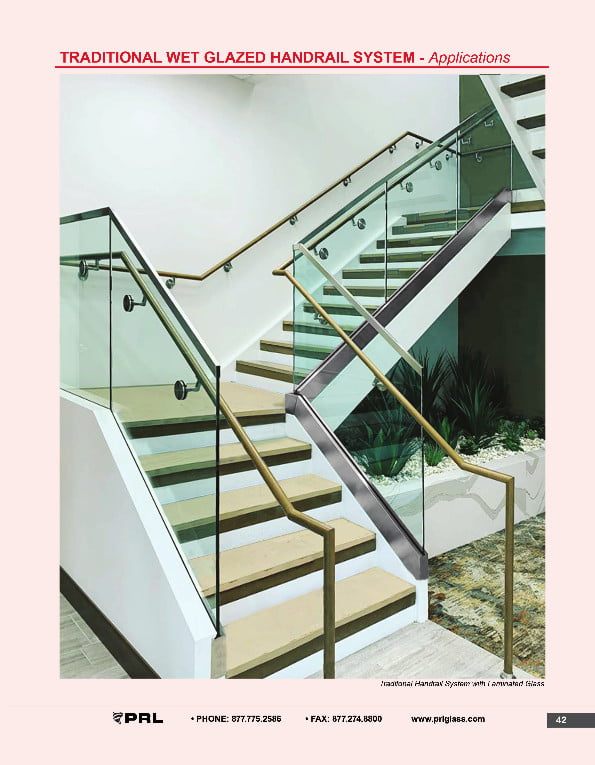

Traditional Wet Set Handrail Systems and Architectural Specifications

Wet-glazed handrail system details

  • High compression cement
  • Conventional wet glazed installation

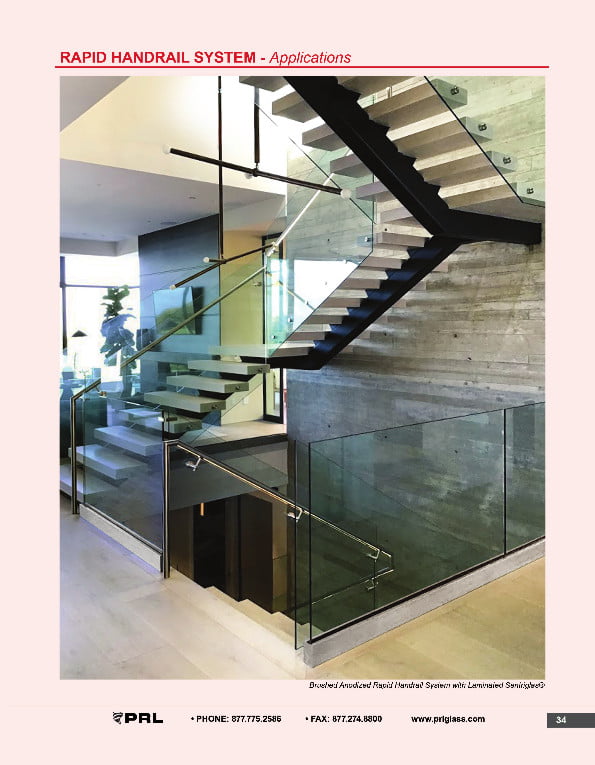

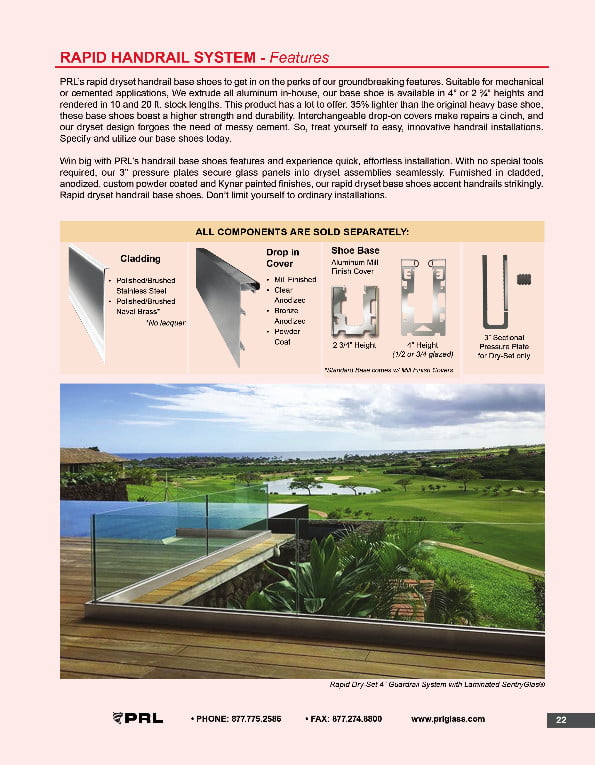

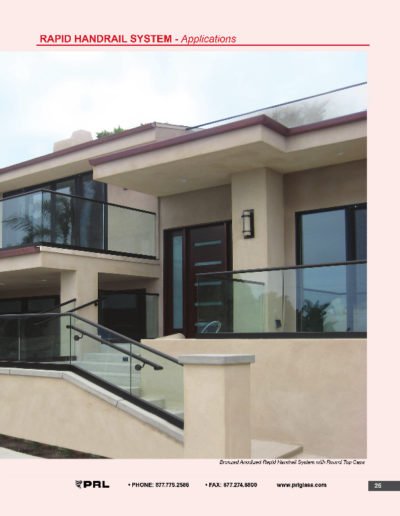

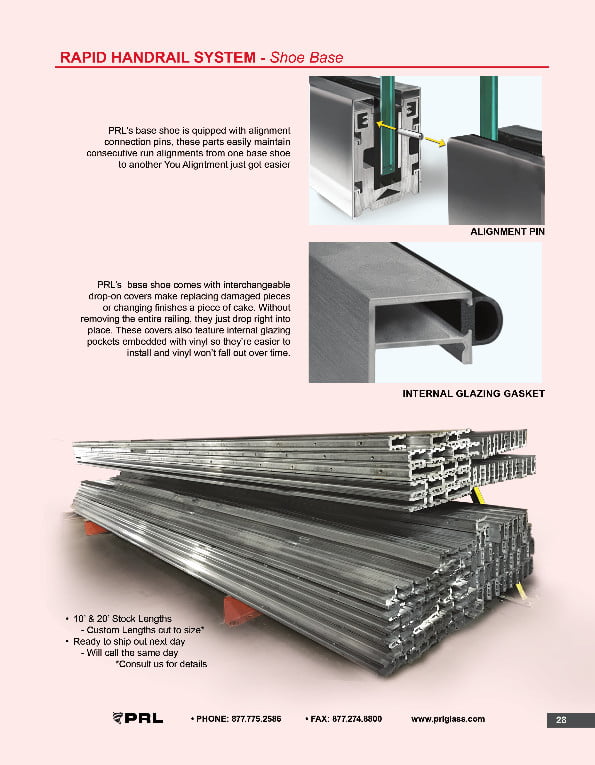

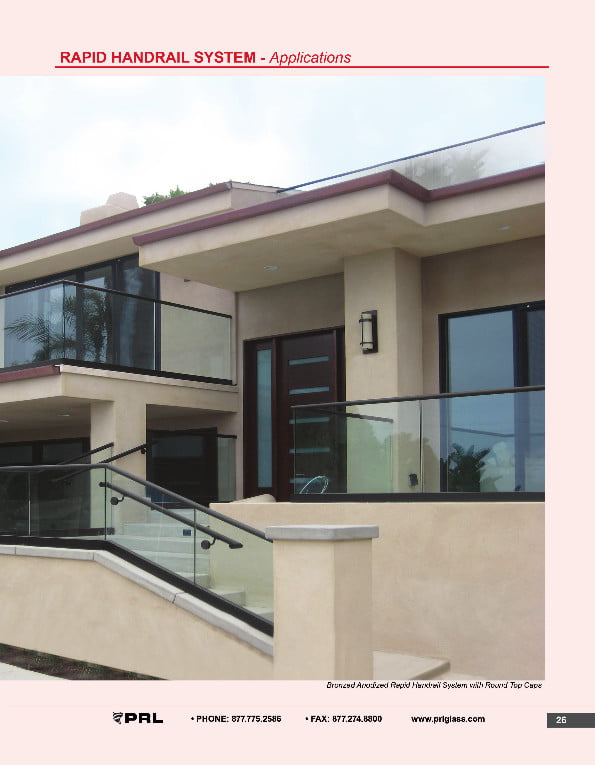

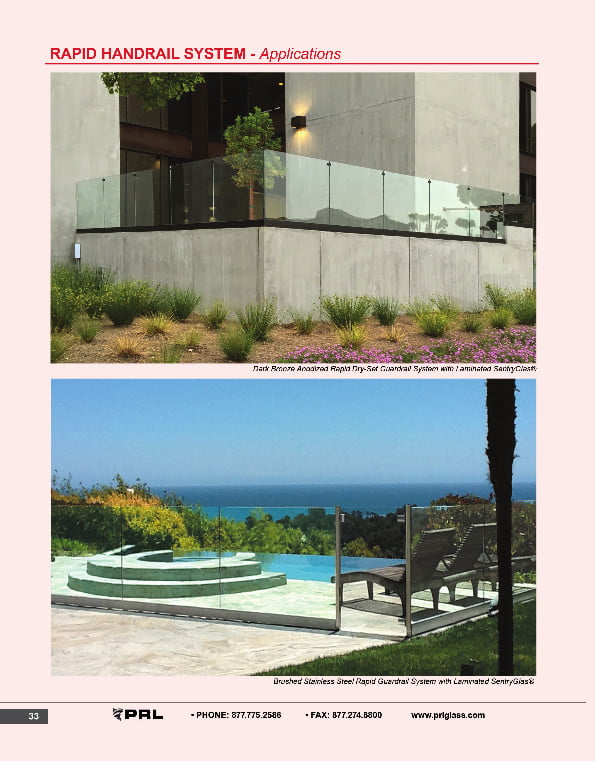

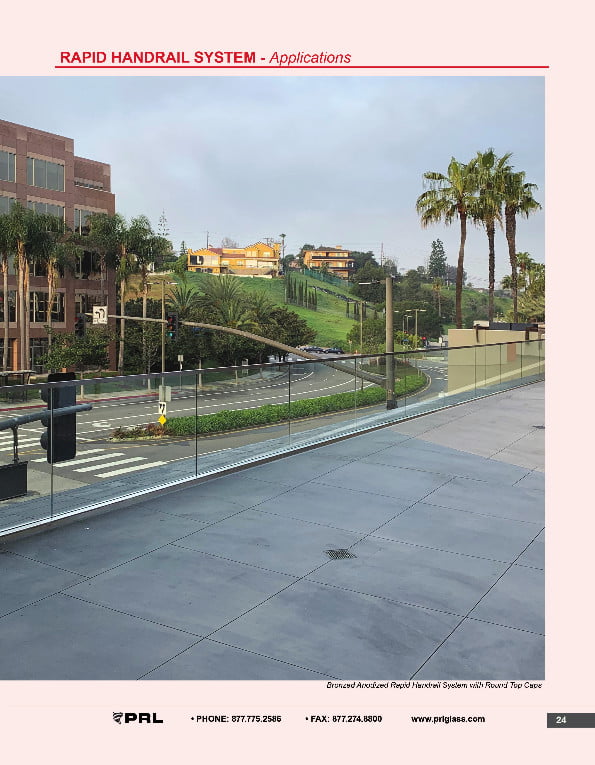

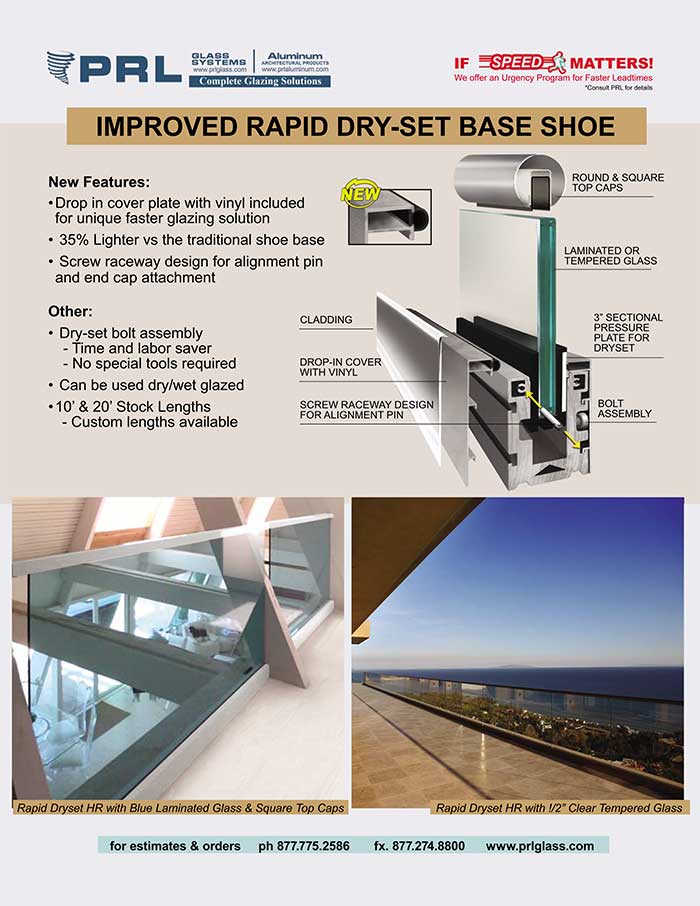

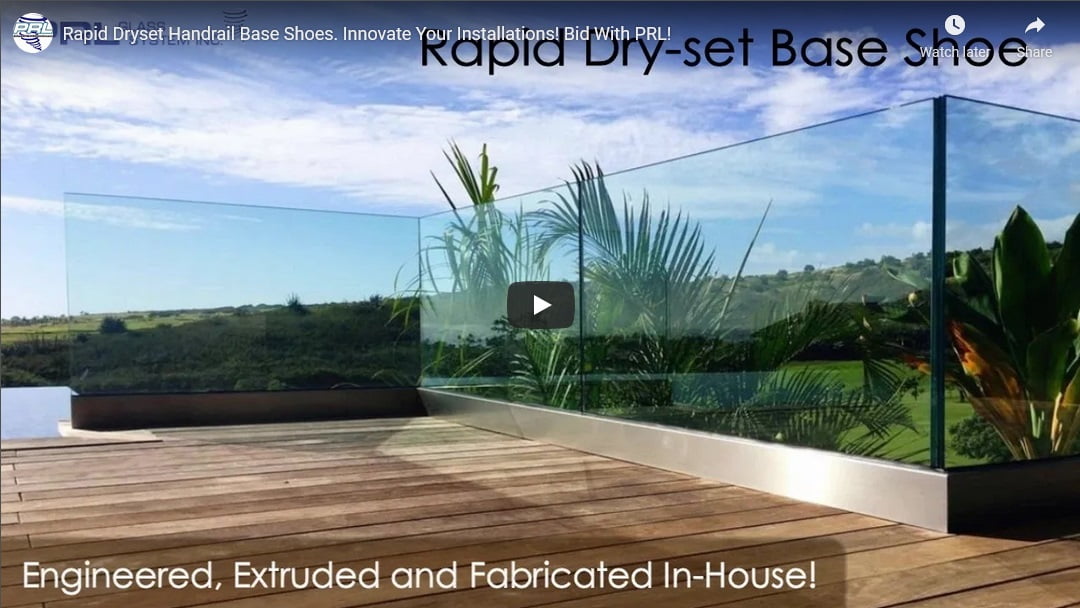

Rapid High and Low Profile Handrail Systems offered for Dry and Wet Set Applications

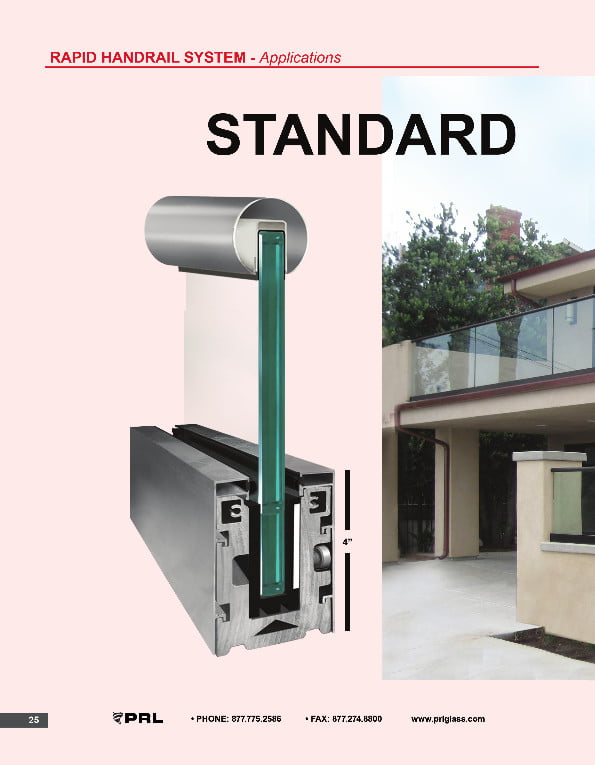

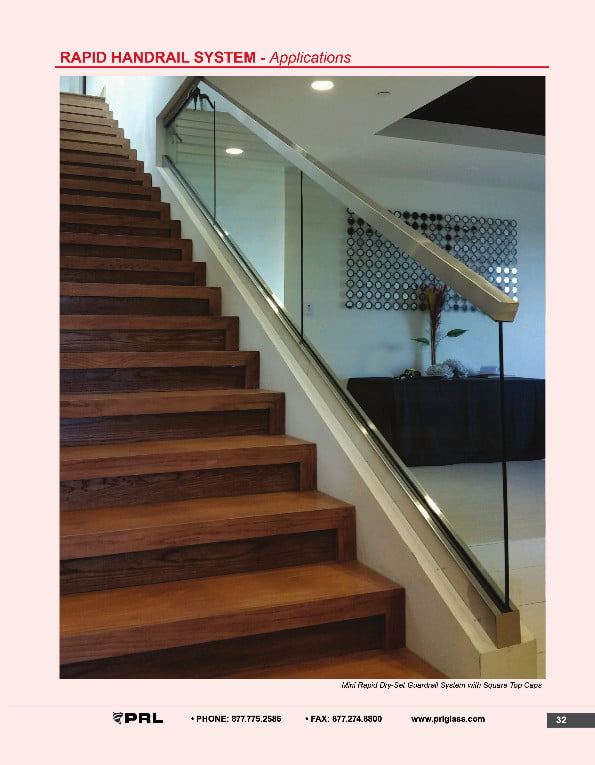

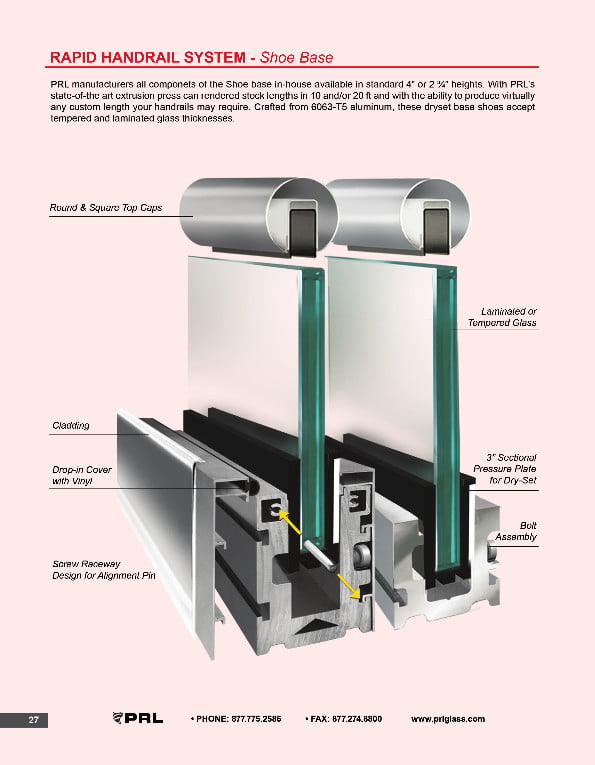

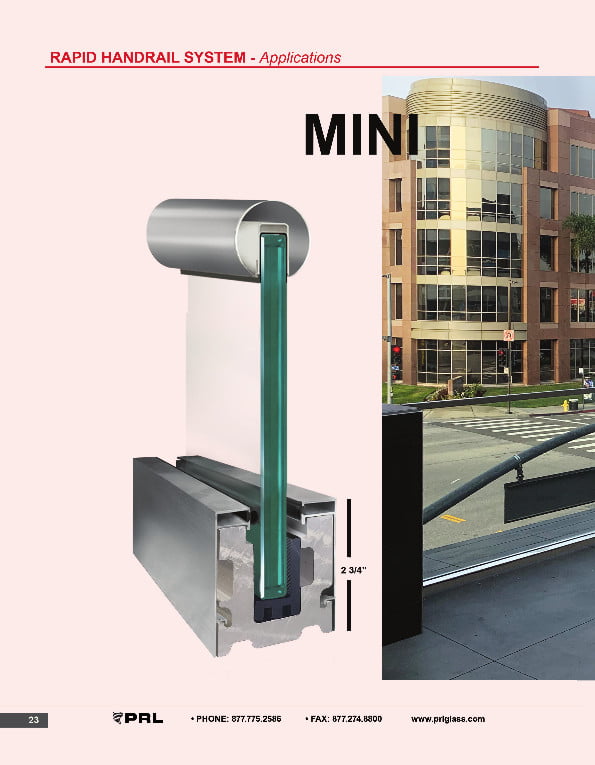

Standard and Mini Rapid Base Shoe PLMRDSHRB Architectural Handrail Specifications

Dry-set Handrail Base shoe PLDSHRB specifications

  • Precision Bolt Assembly
  • Fast, easy to install!
  • Aluminum anodized - clear and dark bronze
  • Clad - Stainless / Brass polished or satin
  • Proven Labor Saver
  • Dry-set Handrail Base shoe
  • More economical (less weight)
  • Lighter (easier on for the installer to move around)
  • Mounting pressure plate for dry set (no special tools required)
  • Interchange cover plates (for both applications)
  • High quality anodized covers (no break line)
  • We can not be beat when it comes to anodized price and quality!
  • Easy drop in covers without tape or silicone
  • Easily replaceable covers in the event of damage or color change

Infinity Series Aluminum Guardrail and Handrail Architectural Specifications

Infinity Handrail Architectural Specifications

  • Floor Post Mount Systems
  • Aluminum Modular Railing Systems
  • Standard Glass Railing and Guardrail Systems
  • Topless Glass Railing Systems
  • Glass and Aluminum Fencing Systems
  • Glass Pool Surround Systems
  • Wind and Privacy Wall Systems

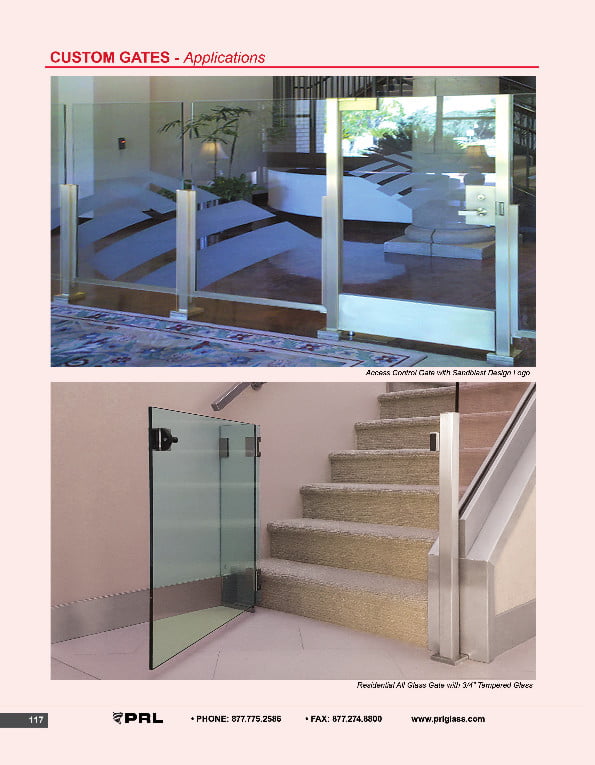

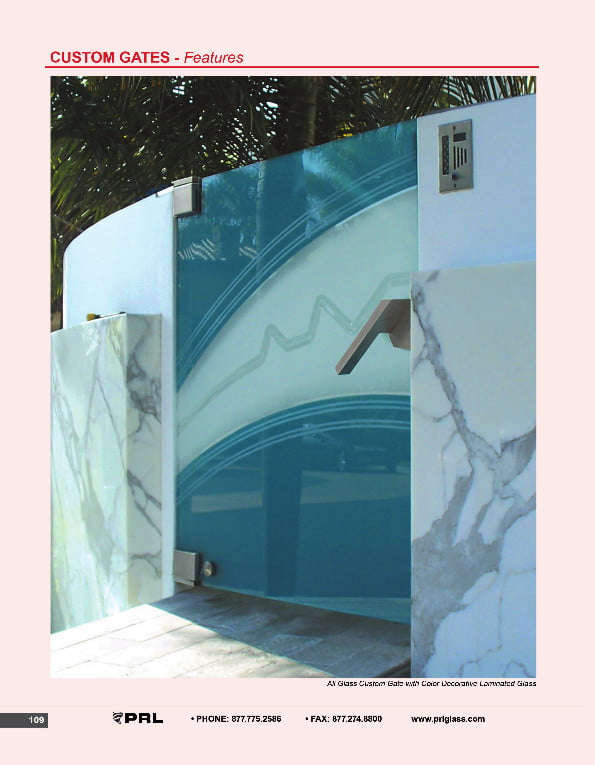

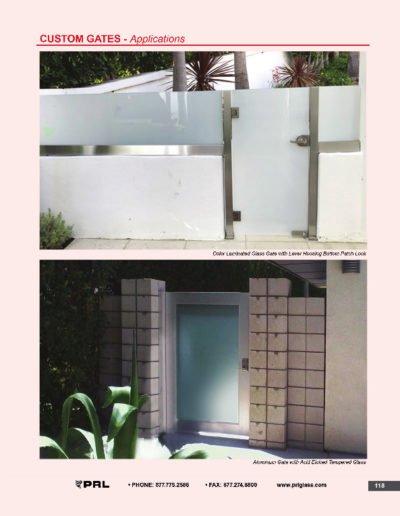

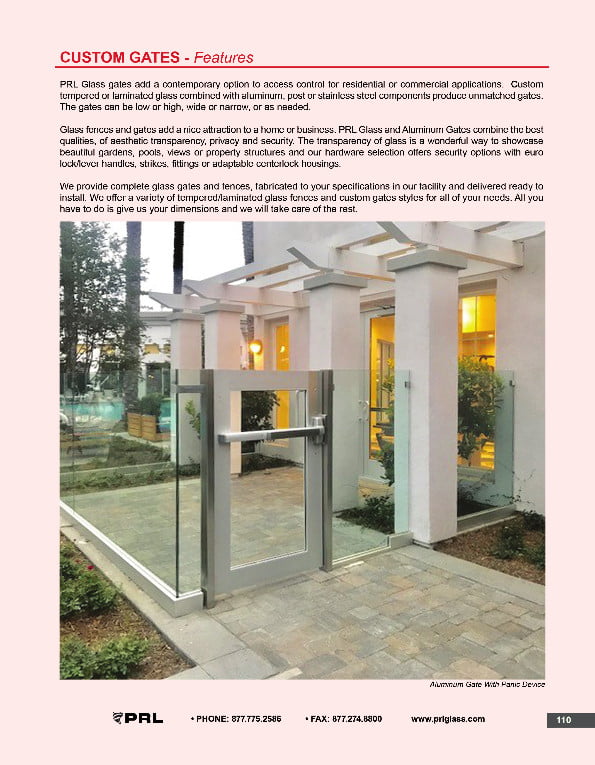

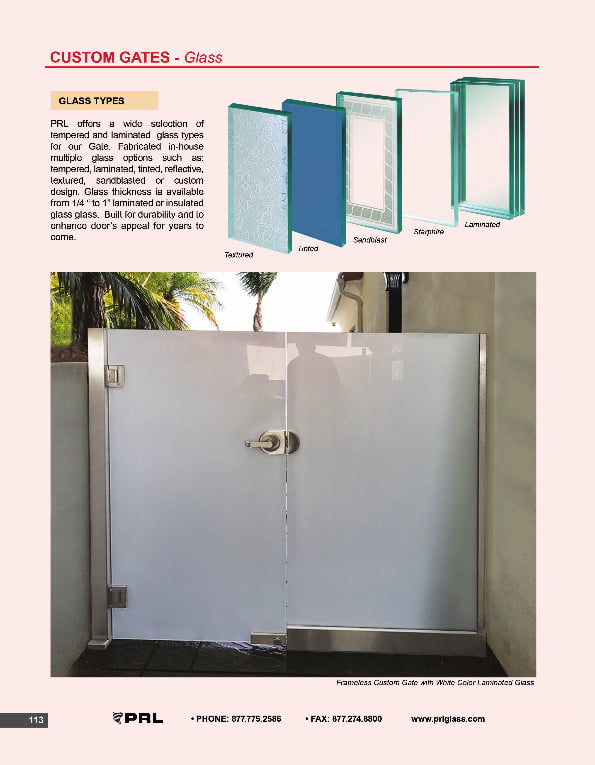

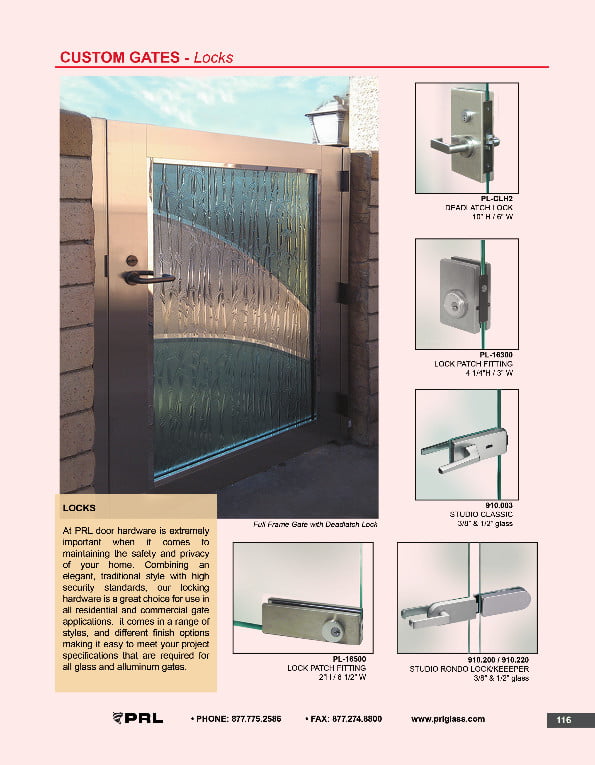

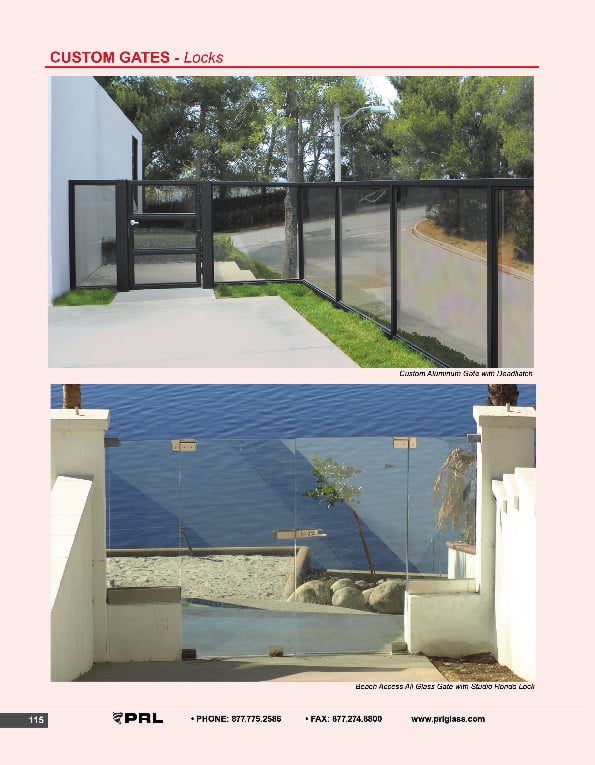

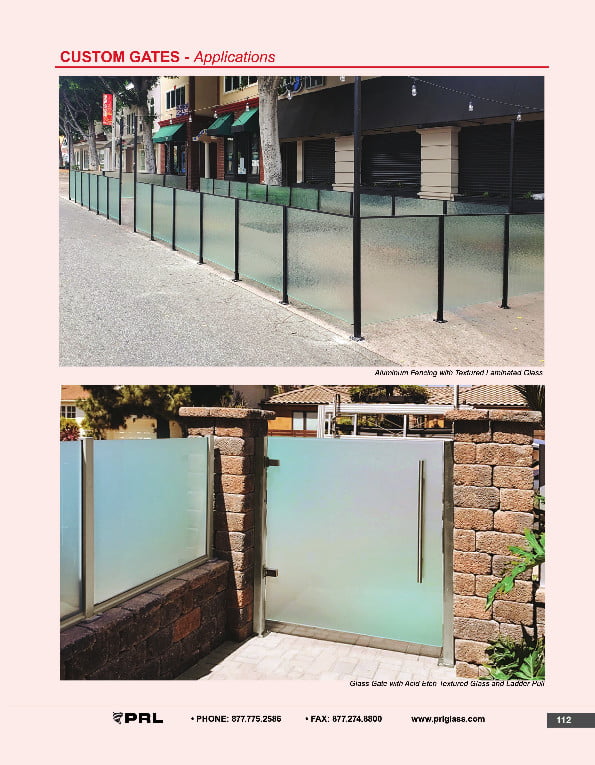

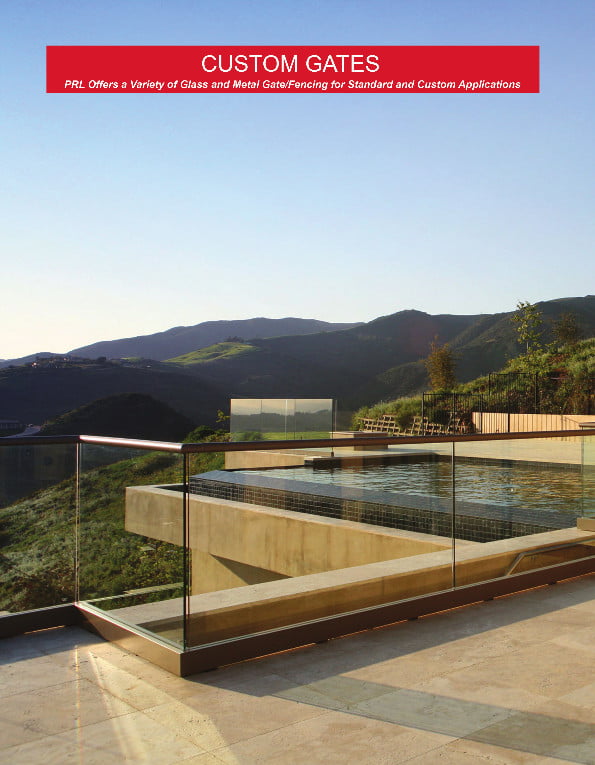

  • Architectural Glass Gate Systems
  • Custom Guardrail / Handrail Specifications all Engineered to provide maximum strength using: ASTM 6063 T5 or 6005 T6 Aluminum

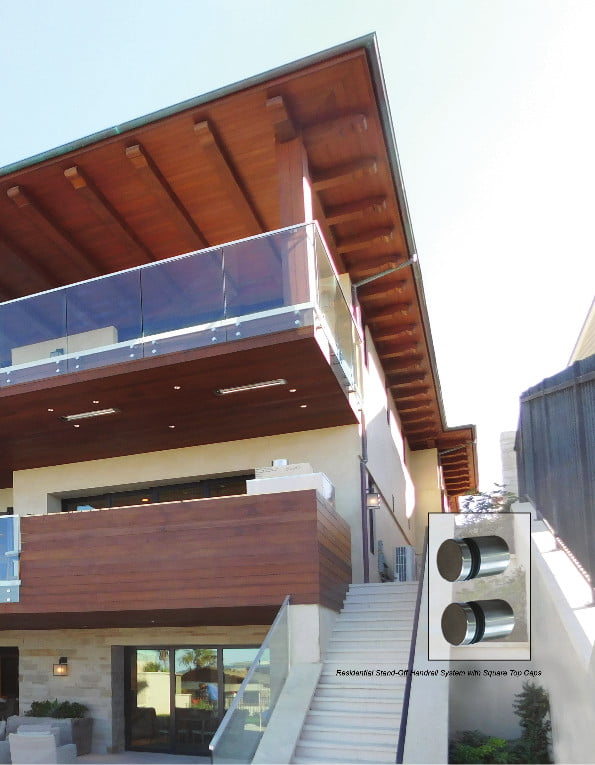

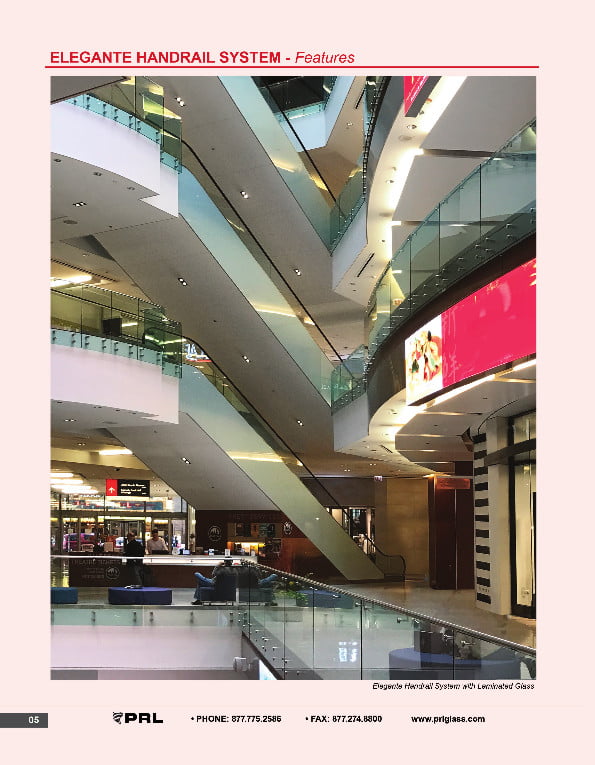

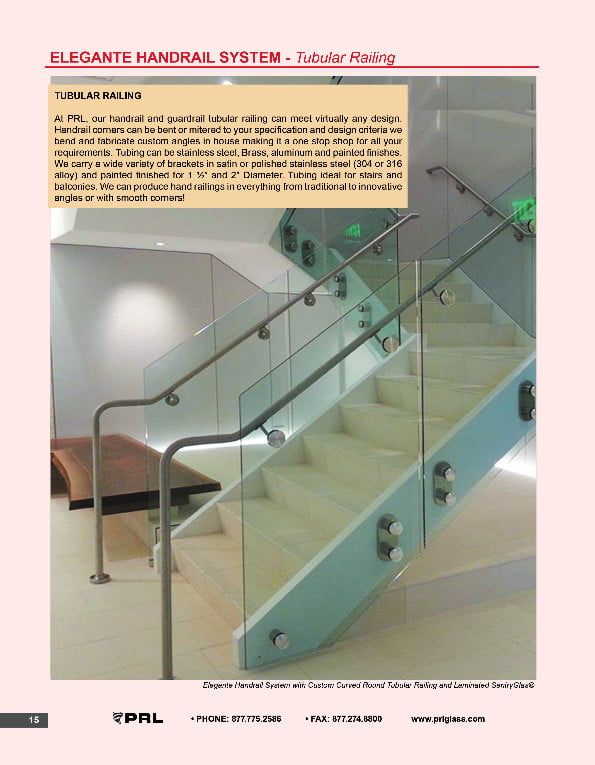

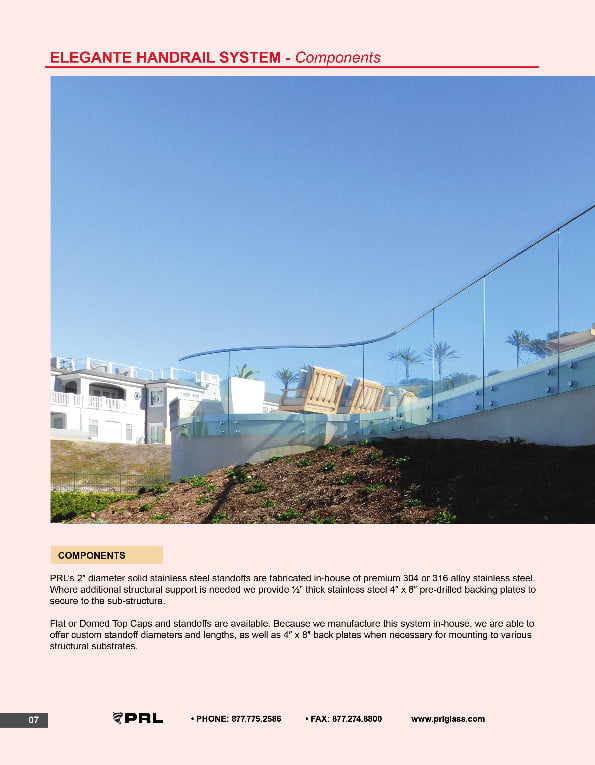

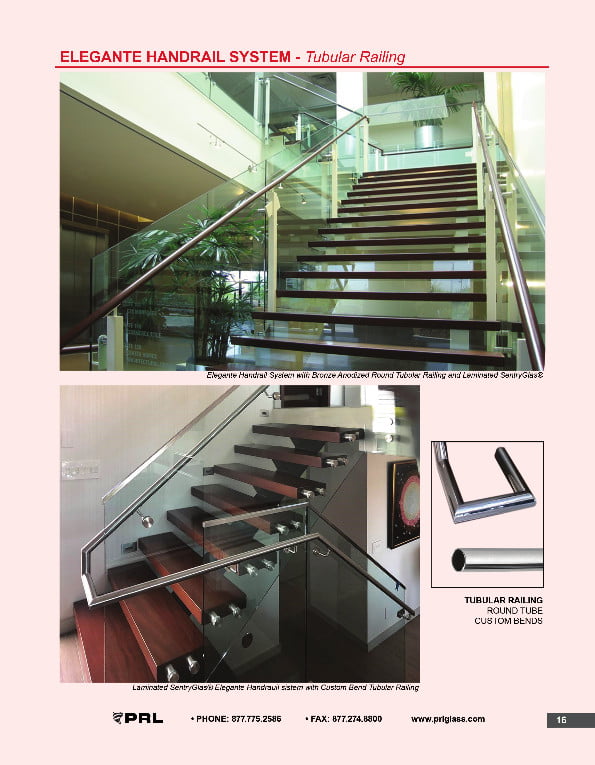

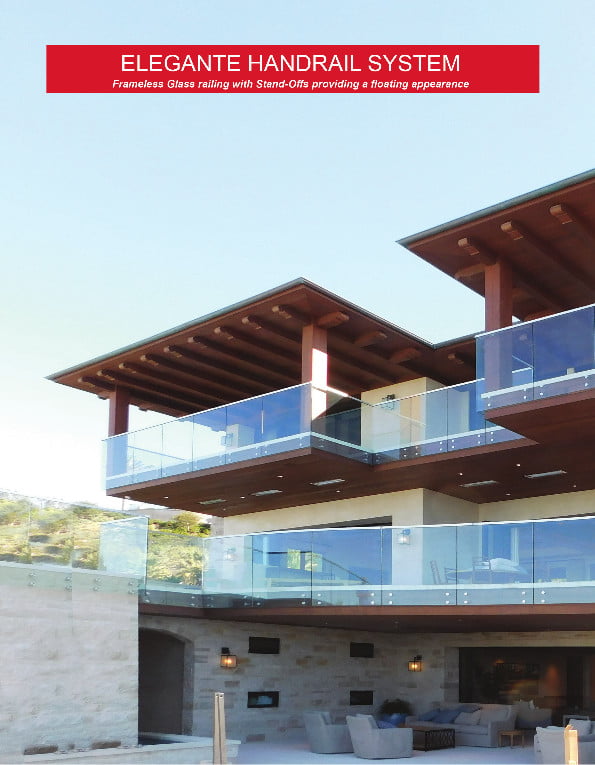

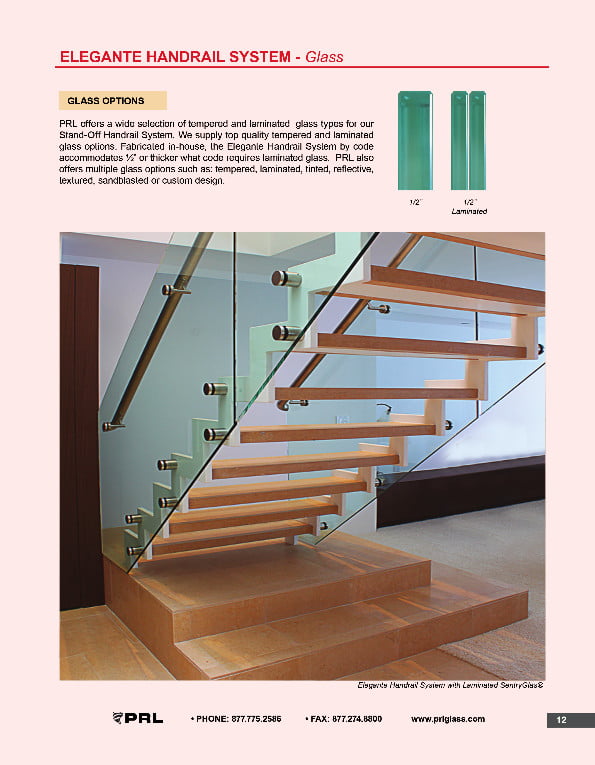

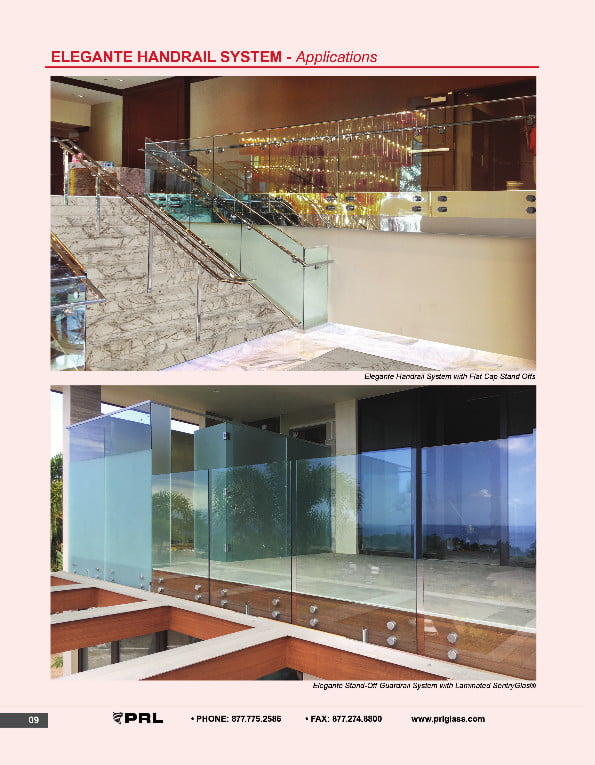

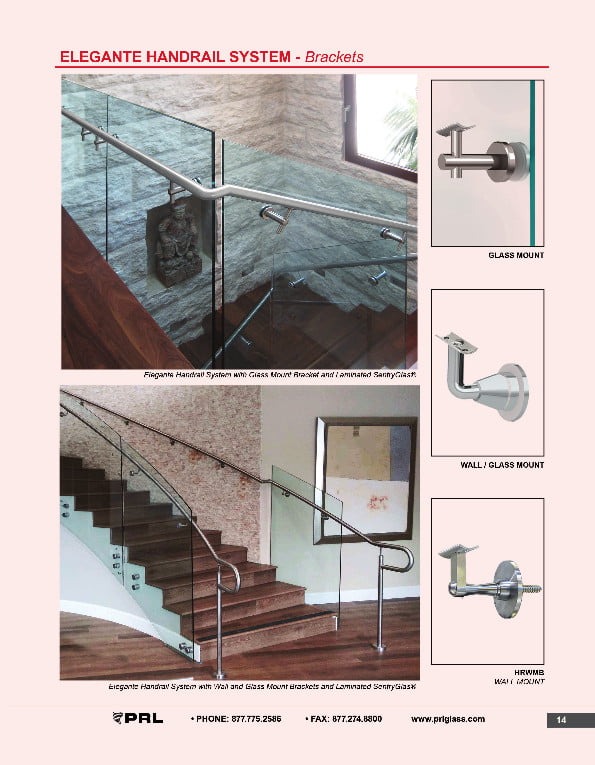

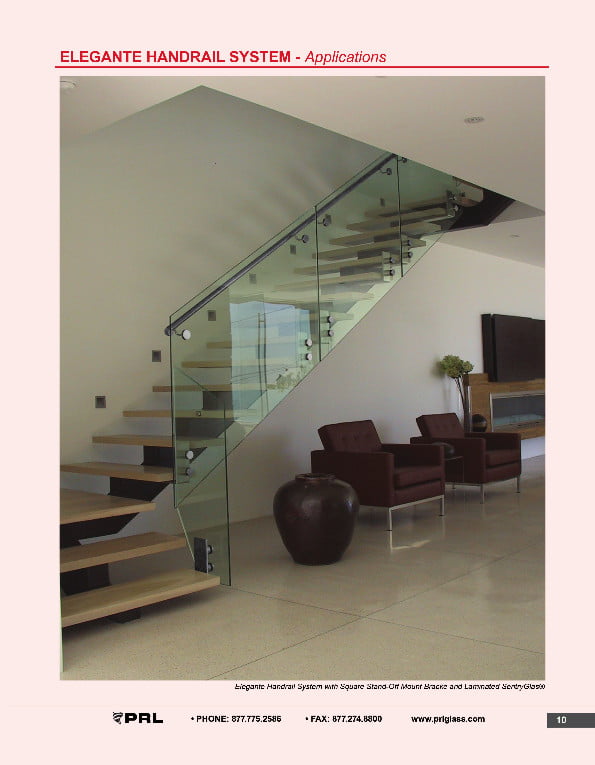

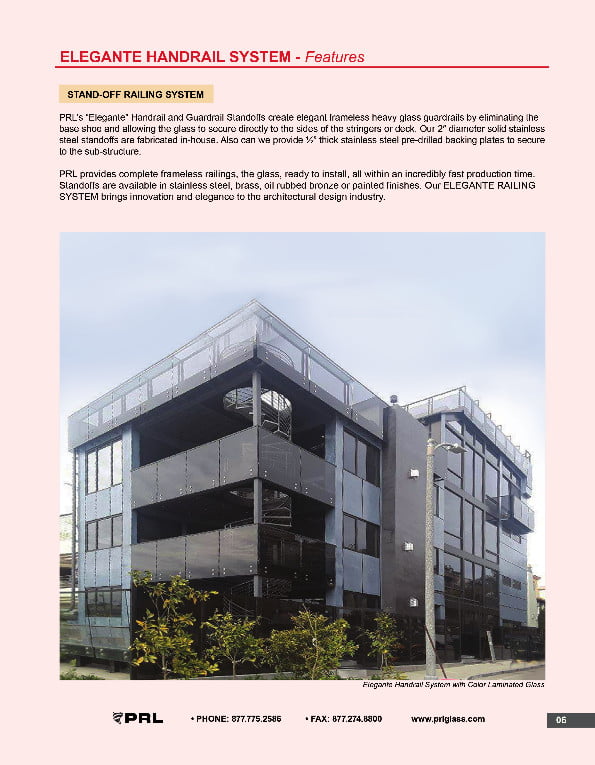

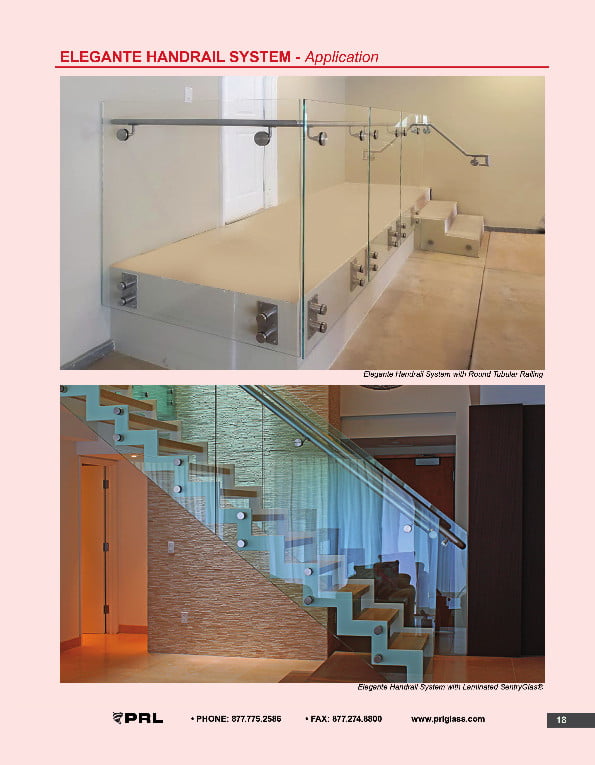

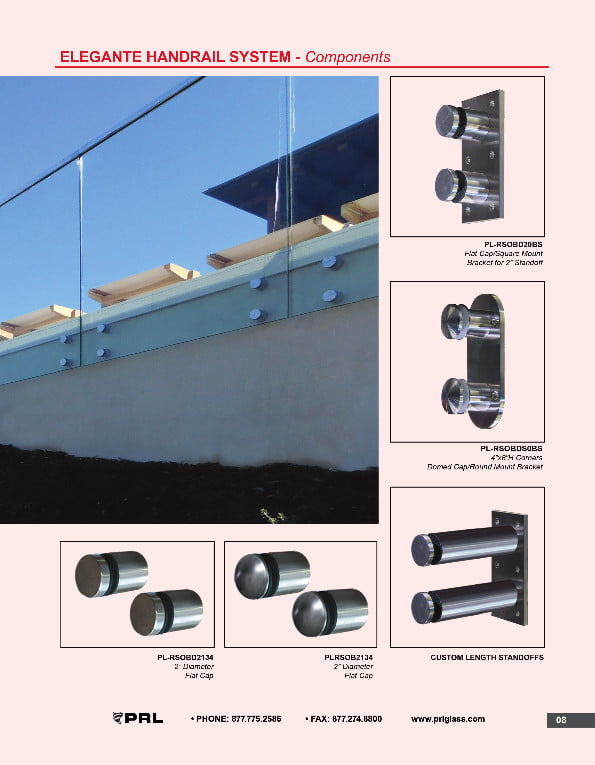

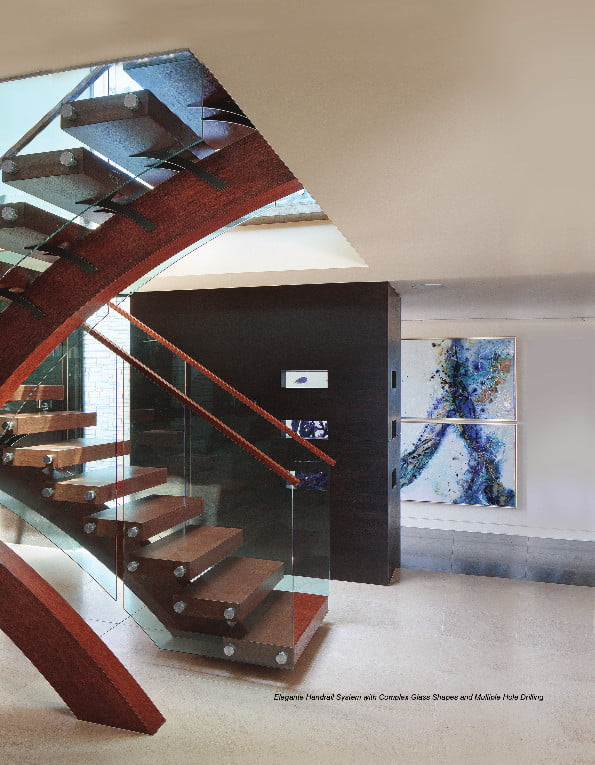

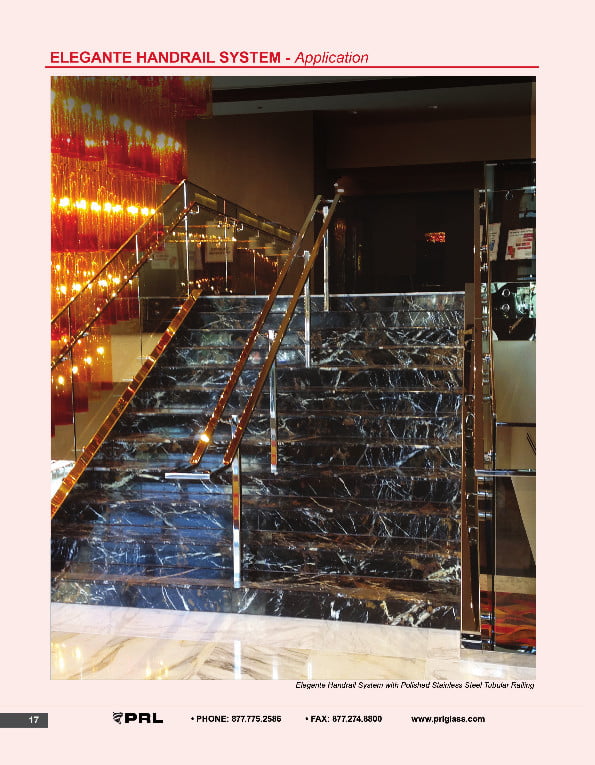

Elegante Stand-off Railing Systems, Handrails and Guardrail Architectural Specifications

Flat End Cap Elegante Architectural Railing Systems and Specifications

Round End Cap Elegante Architectural Railing Systems and Specifications

  • Offset Surface Mount
  • Flat end cap systems
  • Round end cap systems
  • Stainless Steel Tubing
  • Stainless Steel Stand Off Base and End Cap with Mounting Plate
  • PRL offers customized manufacturing to fit the most contemporary stand off railing systems

Elegante Stand-off Railing Systems, Handrails and Architectural Specifications

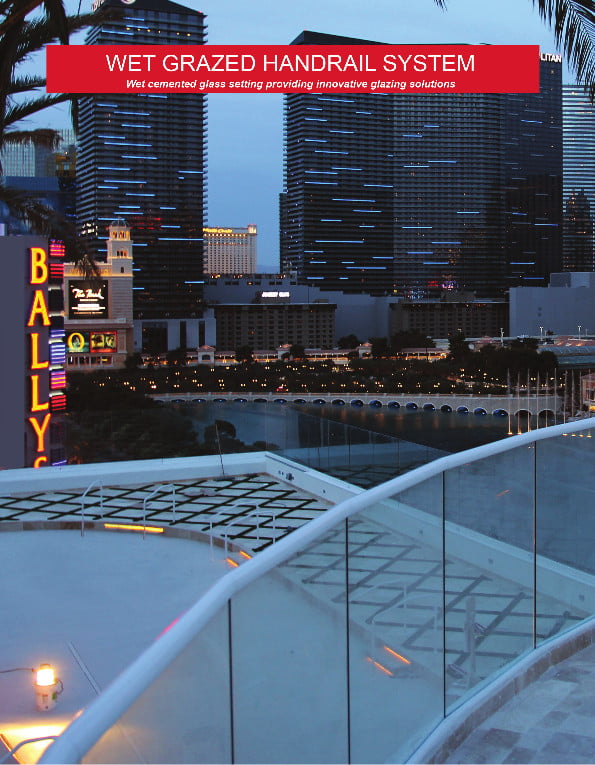

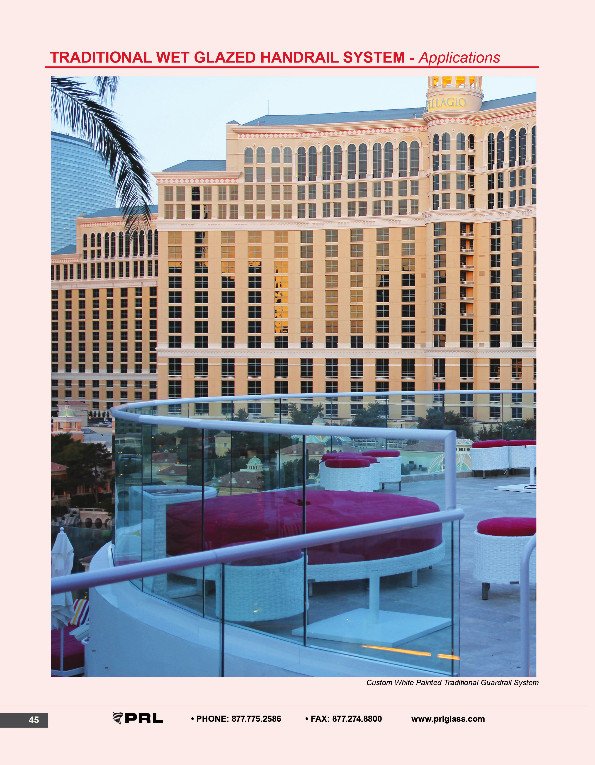

Complete Wet-glaze Handrail and Guardrail systems

wet glazed handrail system

  • Bottom or optional Fascia Mount
  • Test Report CCLW JOB # 08-5221

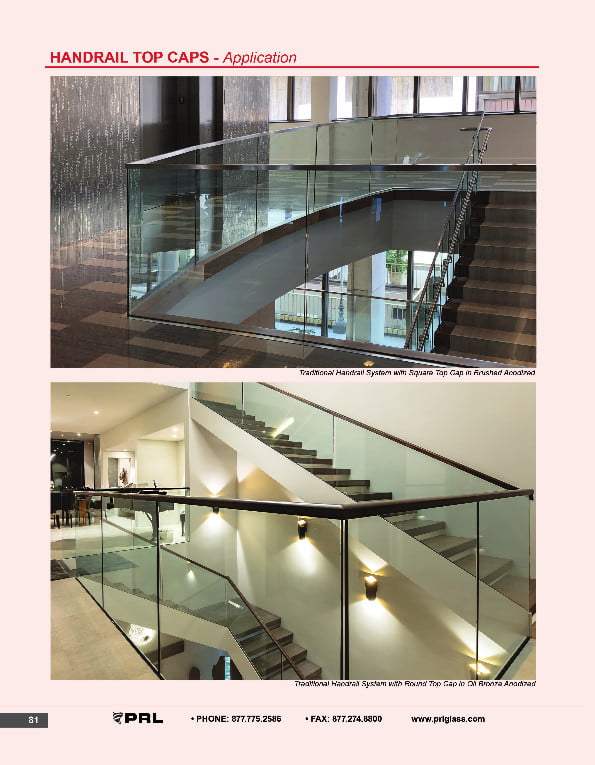

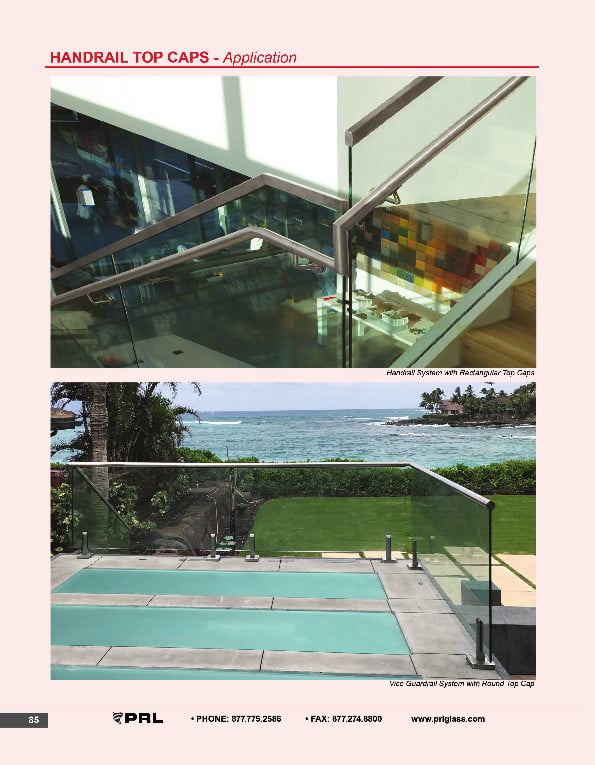

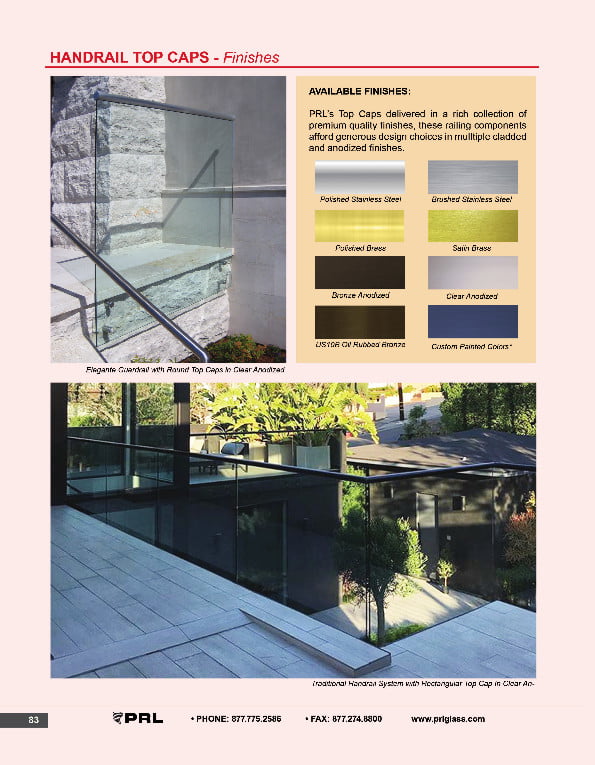

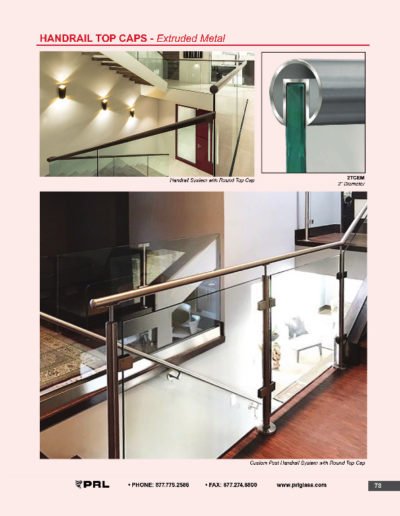

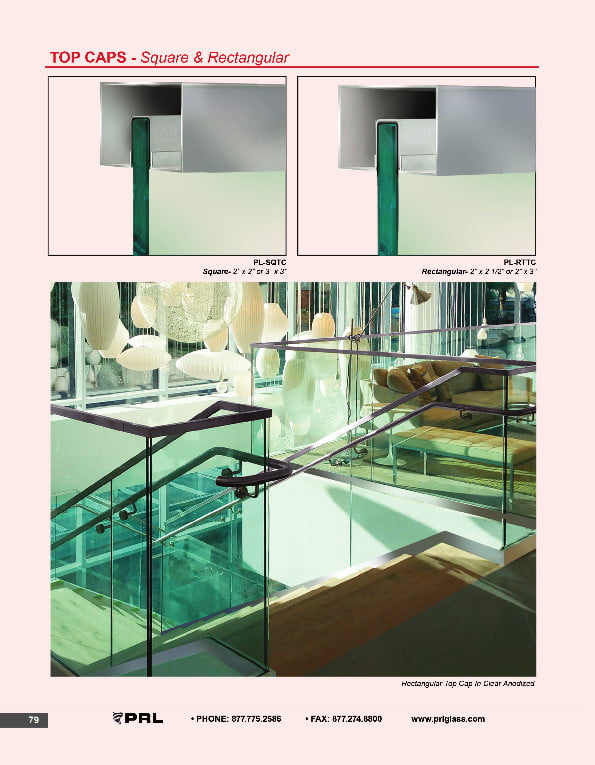

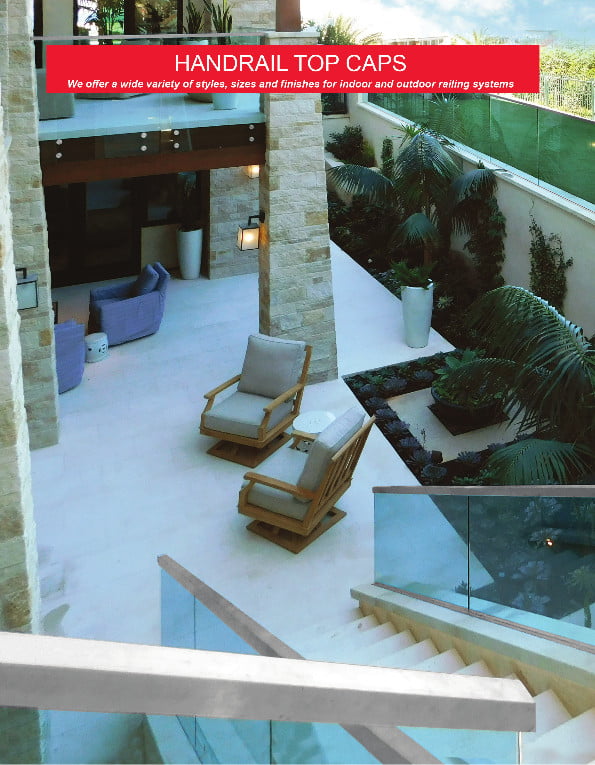

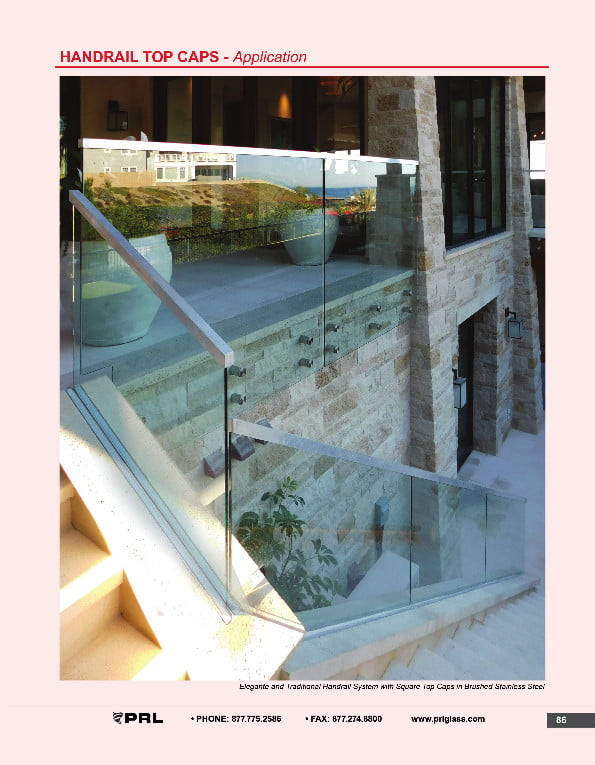

  • Breakformed Stainless steel or Aluminum Top Cap (1-1/2", 2" & 3" in 10' S/L)
  • 2-1/2" x 4-1/8" Std size base shoe (10, 12 and 20 foot stock size)
  • Custom size Available upon request
  • All other accessories available
  • Rockite Cement required

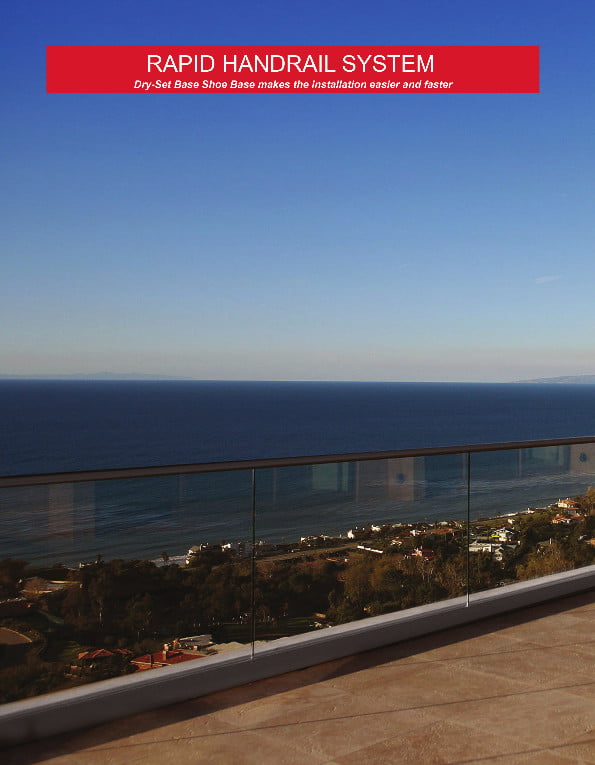

MAXIMIZE Time & Savings by ordering our Complete HR Dry-set Handrail and Guardrail Systems

PRL Glass Dry Set Handrail System PRL Glass Dry Set Handrail System Installation
  • Proven Labor Saver
  • Shoe Base 30% lighter / Stronger
  • Bottom or optional Fascia Mount
  • Clad Fascia (optional)
  • Optional Side Mount
  • Bottom Mount
  • Glass Lateral Attachment
  • Available stock sizes are 10' 12' and 20'
  • Breakformed Stainless steel or Aluminum Top Cap (1-1/2", 2" & 3" in 10' S/L)
  • Custom size available upon request
  • Fast, Easy & Clean Installation
  • Reduce Labor Cost
  • Drop'in™ Cover plates
  • No Additional / Special Tool Required
  • Precision bolt assembly
  • Plumb Adjustment up to 5/8" (Vertically) & 5/8" (Right Side)
  • Test Report CCLW JOB # 10-5395-1
  • Available Finishes: Anodized, Mill and Clad

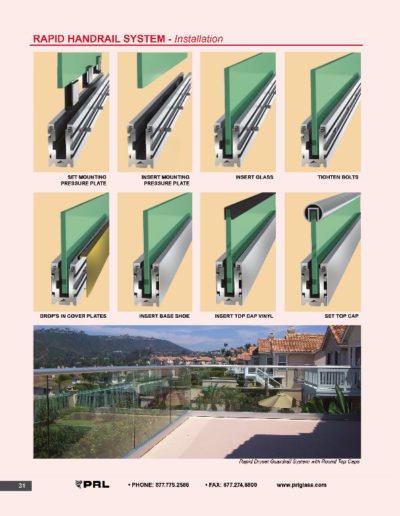

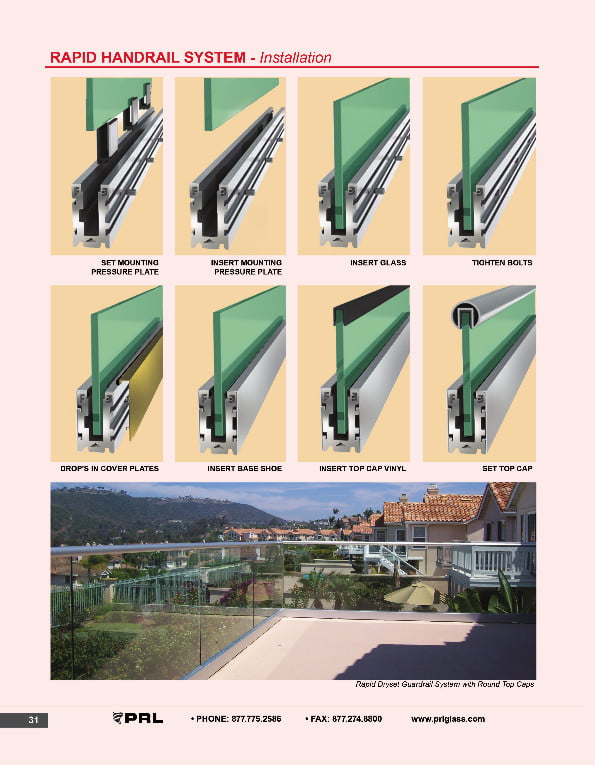

Dry set system handrail system install cut away image Dry set handrail system install breakout image
Dry Set Handrail Set Example Image Dry Set Handrail Insert Example Image Dry Set Handrail Insert Glass Example Image Dry Set Handrail Tighten Screw Example Image
Dry Set Handrail Drop in Cover Plates Example Image Dry Set Handrail Insert Base Shoe Example Image Dry Set Handrail Insert Top Cap Example Image Dry Set Handrail Set Top Cap Example Image

PRL Glass prides itself as being your One Stop Shop and leading manufacturer of all architectural glass and aluminum handrail systems, components and hardware.

*Free Local Delivery *consult PRL Glass for details.

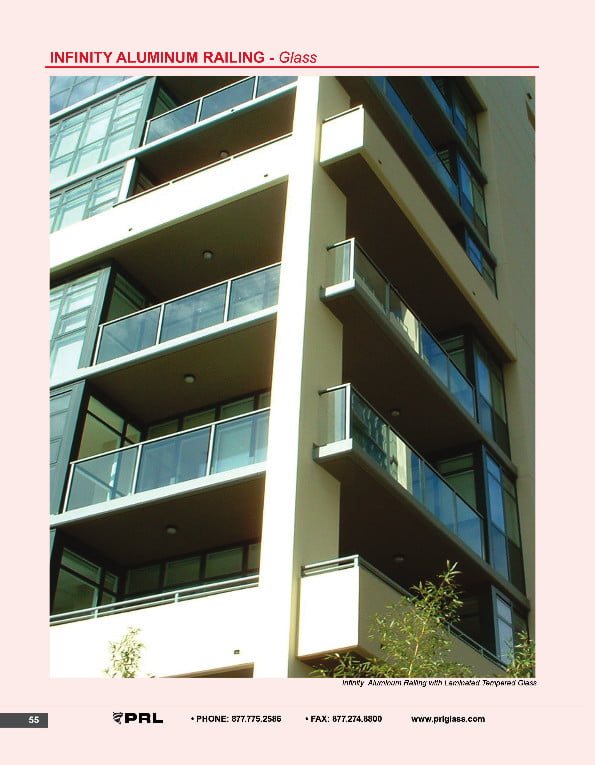

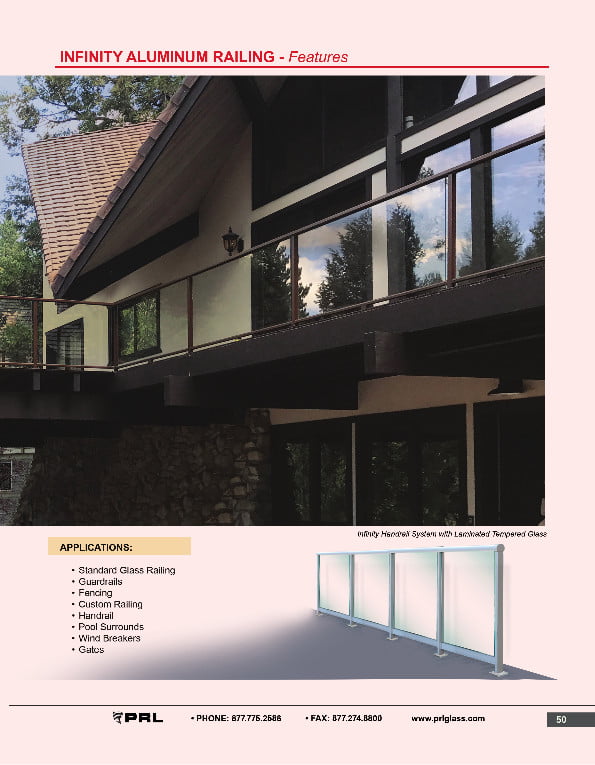

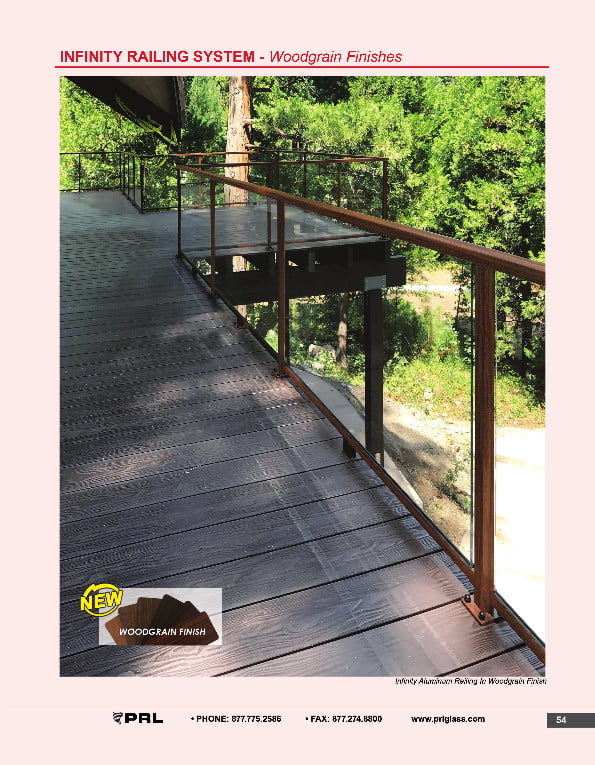

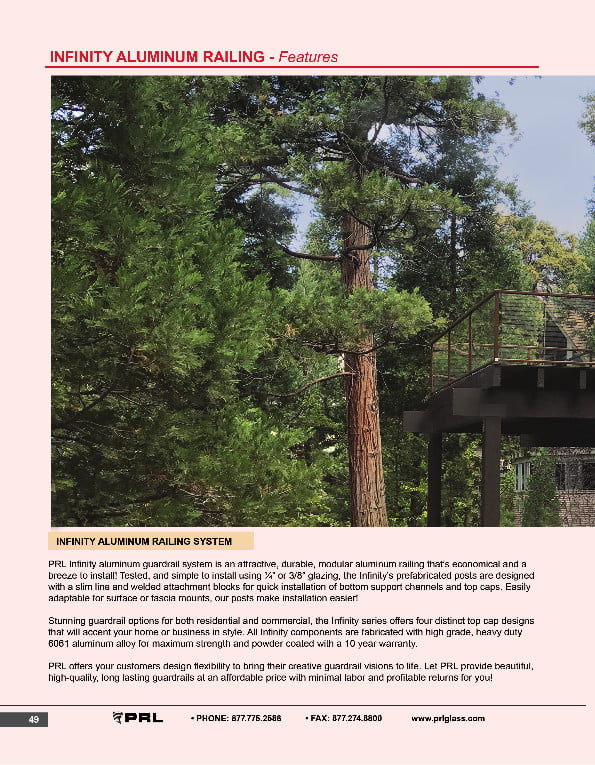

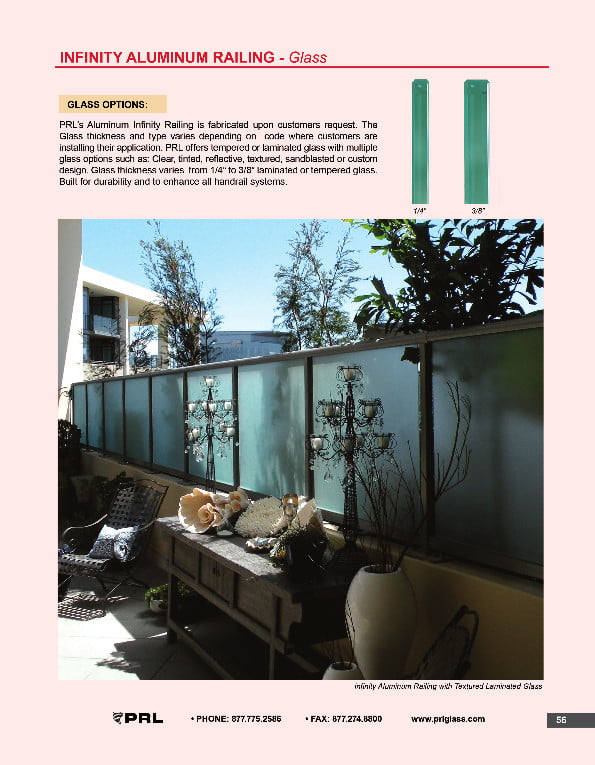

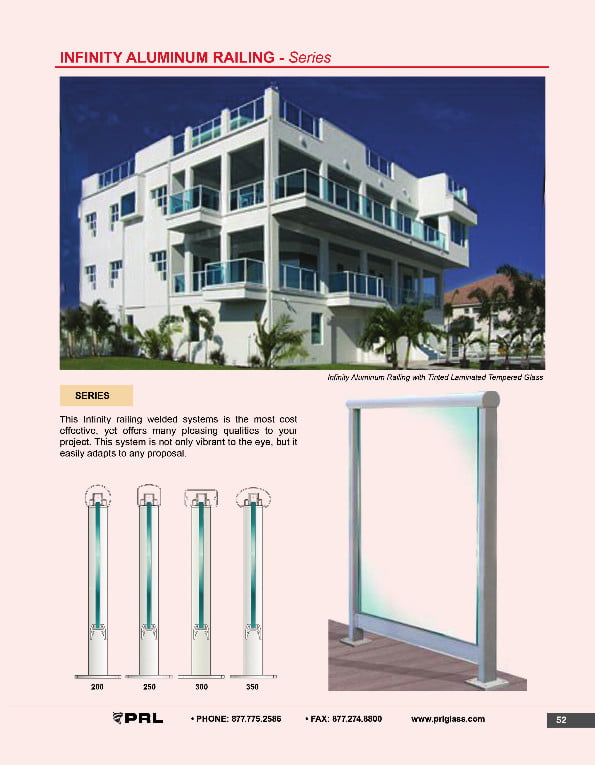

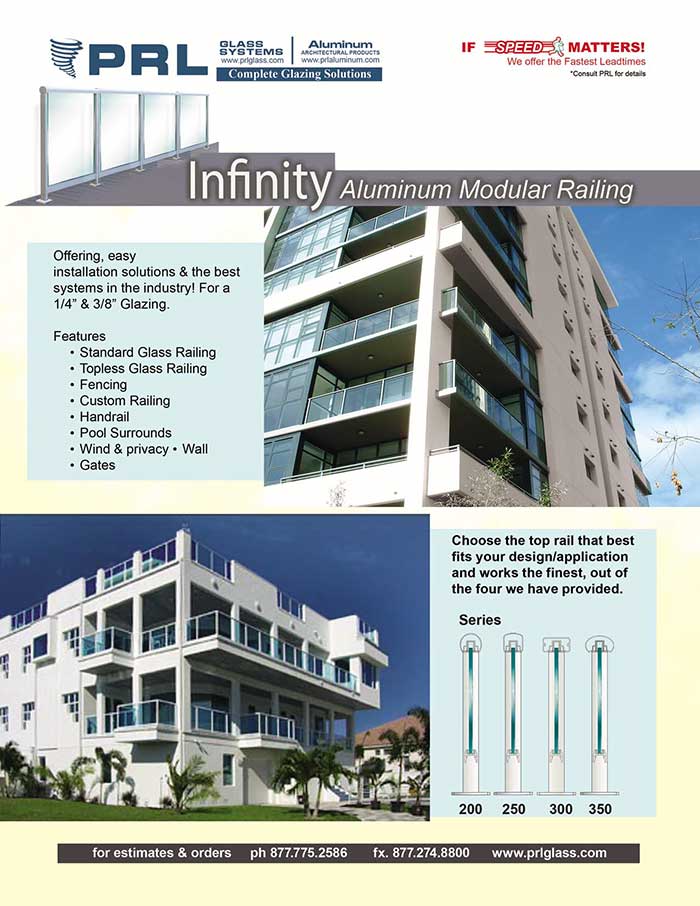

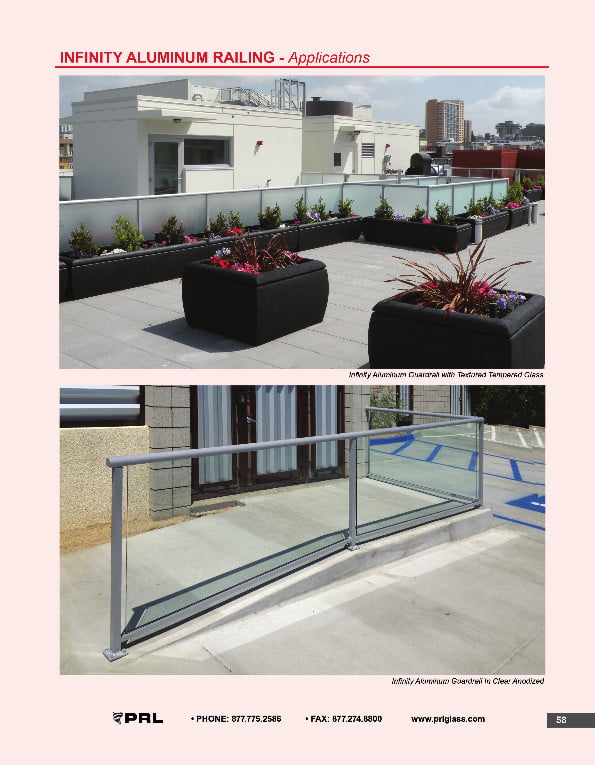

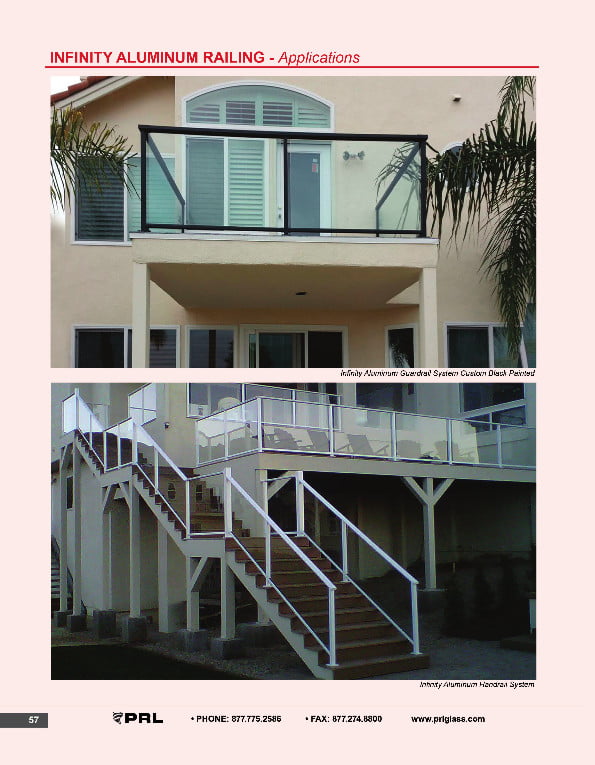

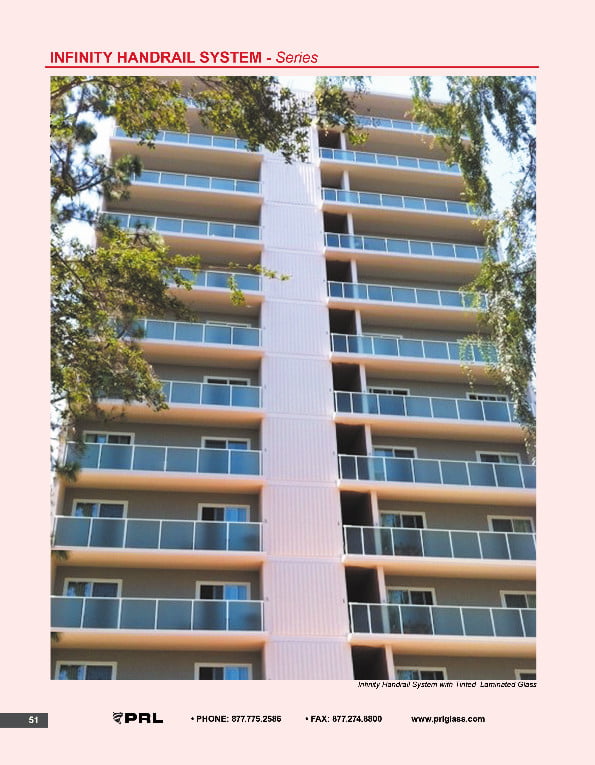

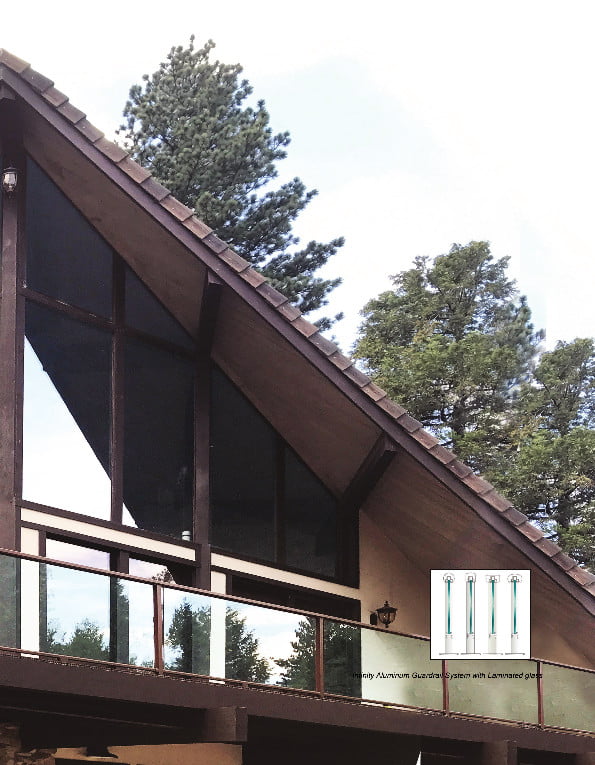

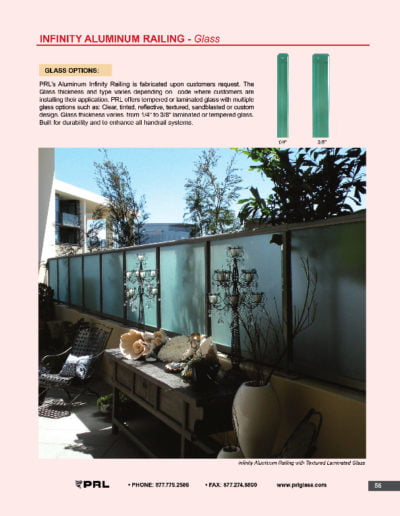

Infinity Series Aluminum Guardrail / Handrail Systems

PRL 200 Series Guardrail System, Clean, Durable, Safe Handrail Applications Contemporary Handrails, Privacy Walls, Surrounds by PRL Glass

Architecturally designed hand railing systems, specifications which offer strength, comfort and stability to contemporary state of the art design.

Environment friendly powder coat finishes on standard aluminum rails are extremely durable and low maintenance, we also offer a diversity of handrail / guardrail finishes to match any of your existing products and or designs.

State of the art in house fabrication, providing you with a wide range of solutions for almost any glass railing applications.

  • Standard Glass Railing System
  • Topless Glass Railing
  • Fencing
  • Custom Guardrail / Handrail
  • Pool Surrounds
  • Wind and Privacy Wall
  • Gates

Infinity Hand Railing Systems manufactured with the highest grade extruded aluminum, 40 times stronger than wood.

Aluminum is one of the sturdiest materials in North America. This railing can withstand harsh weather conditions and prevents rust.

Infinity Series Handrail Systems are engineered to provide maximum quality and strength using: ASTM 6063 T5 or 6005 T6 Aluminum.

Complete guardrail and handrail systems to fit all your patio application needs.

Complete guardrail systems for all your patio applications

The welded, Infinity handrail system is one of the most cost effective handrail installation systems available, offering many architectural design qualities to enhance each and every handrail project. This system is not only vibrant to the eye but easily adapts to any proposal.

Choose the top rail that best fits your architectural design.

PRL Infinity Aluminum 200 Series Adaptable, Contemporary, Durable Handrail / Guardrail System PRL Infinity Aluminum 250 Series Adaptable, Contemporary, Durable Handrail / Guardrail System PRL Infinity Aluminum 300 Series Adaptable, Contemporary, Durable Handrail / Guardrail System PRL Infinity Aluminum 350 Series Adaptable, Contemporary, Durable Handrail / Guardrail System

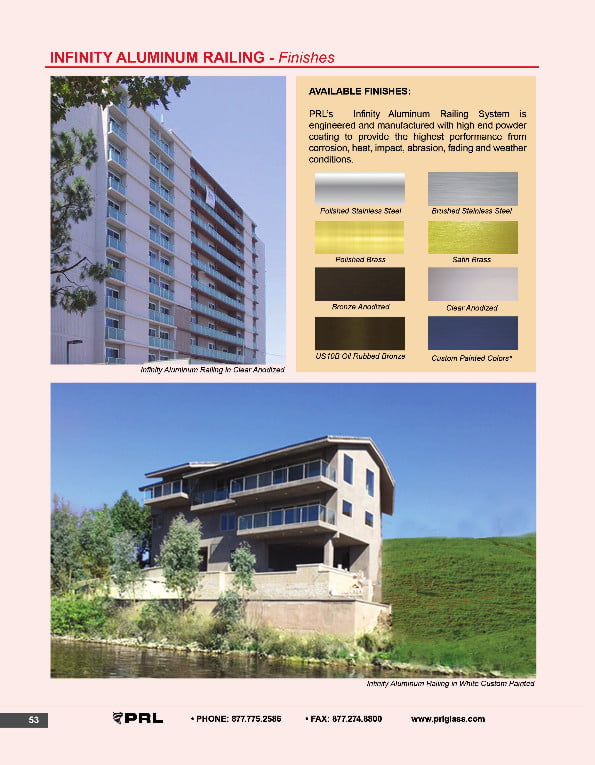

Standard Handrail / Guardrail Finishes and Colors

High end powder coating to provide the highest performance from Corrosion, Heat, Impact, Abrasion, Fading and Weather Conditions.

PRL offering top of the line handrail finishes and colors systems, architectural metals designed, engineered and manufactured in house with the highest quality powder coating available. Assured performance from Corrosion, Heat, Impact, Abrasion, Fading and Weather Conditions.

Complete In House Manufactured Stand Off Railing Systems

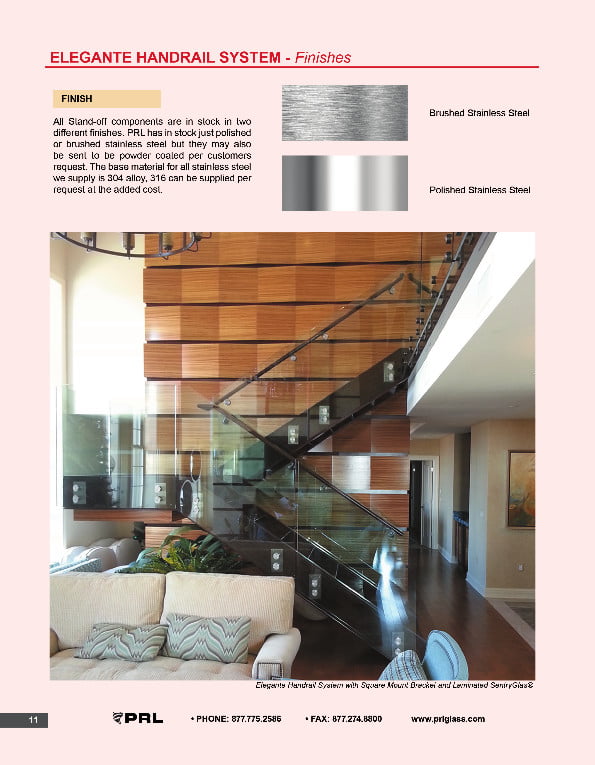

Elegante Stand Off Railing Systems

For Complete Architectural Handrail Specifications, Estimates & Orders Please Call Our Handrail Design Department:

PRL 90,000 sq ft facility, year 2011

Phone Toll Free (877) 775-2586

Fax Toll Free (877) 274-8800

14760 Don Julian Rd., Industry, CA 91746
